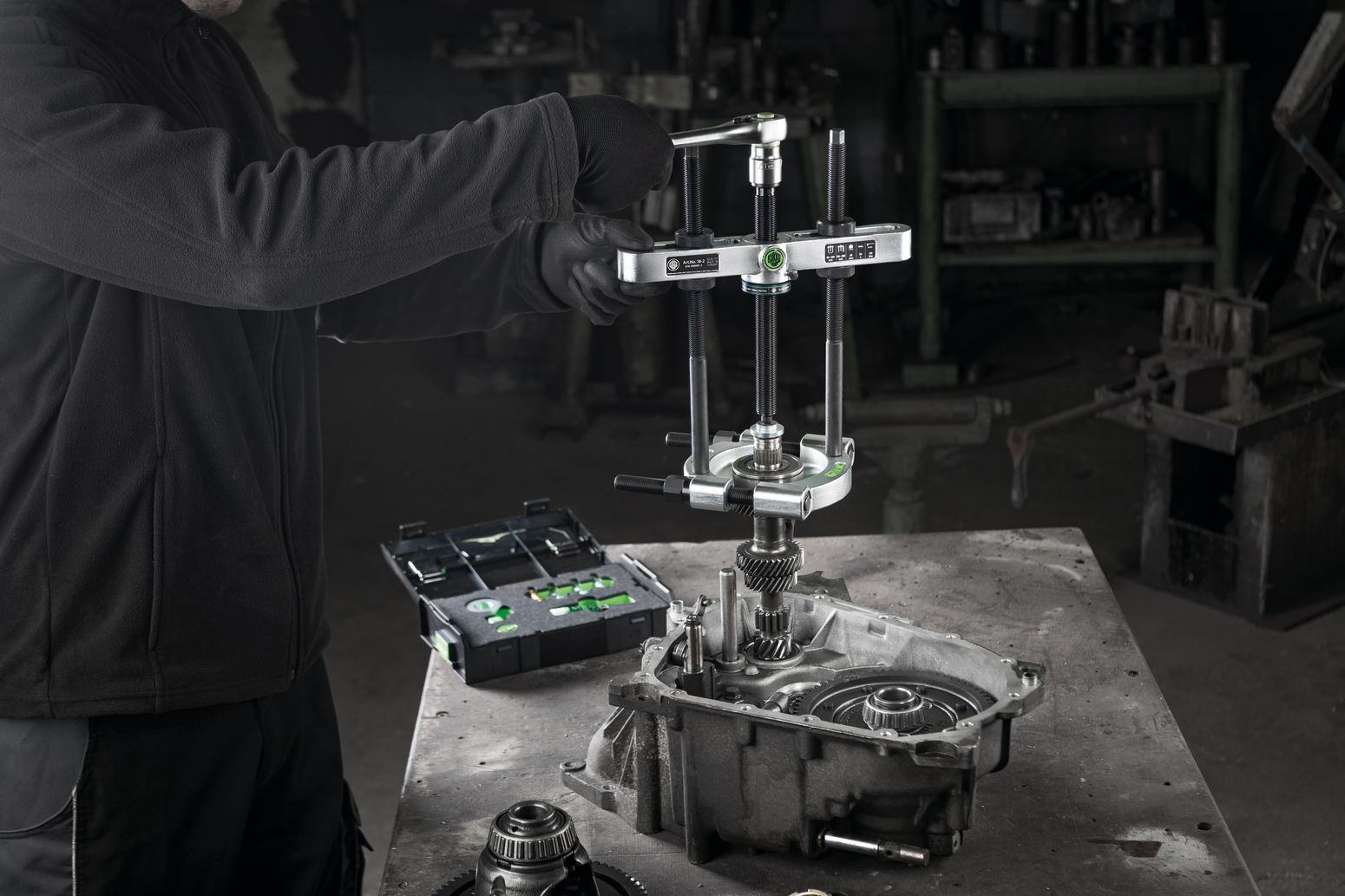

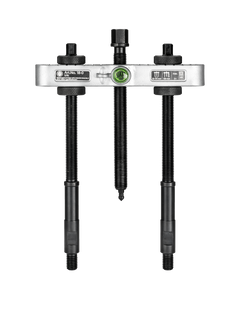

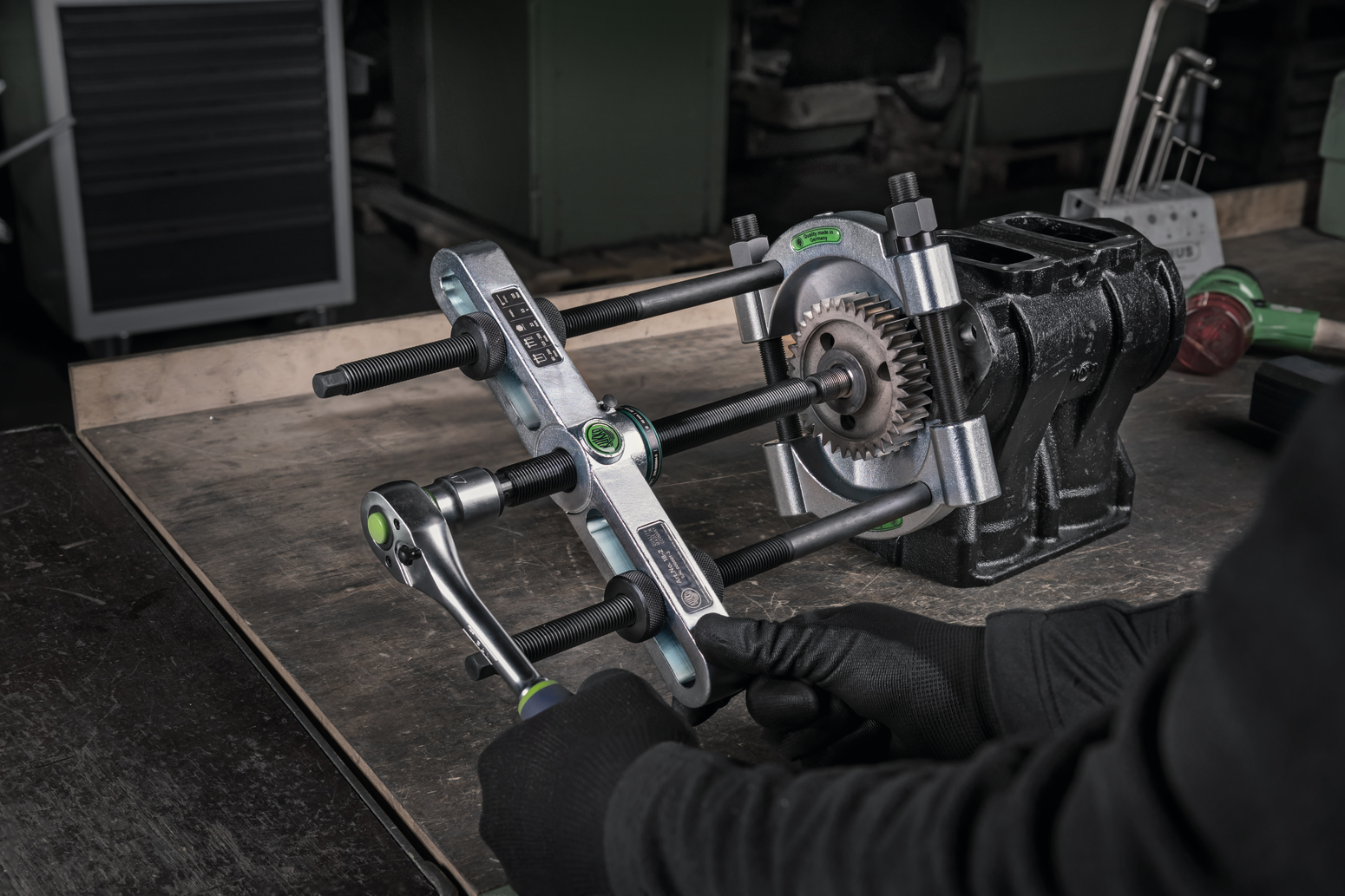

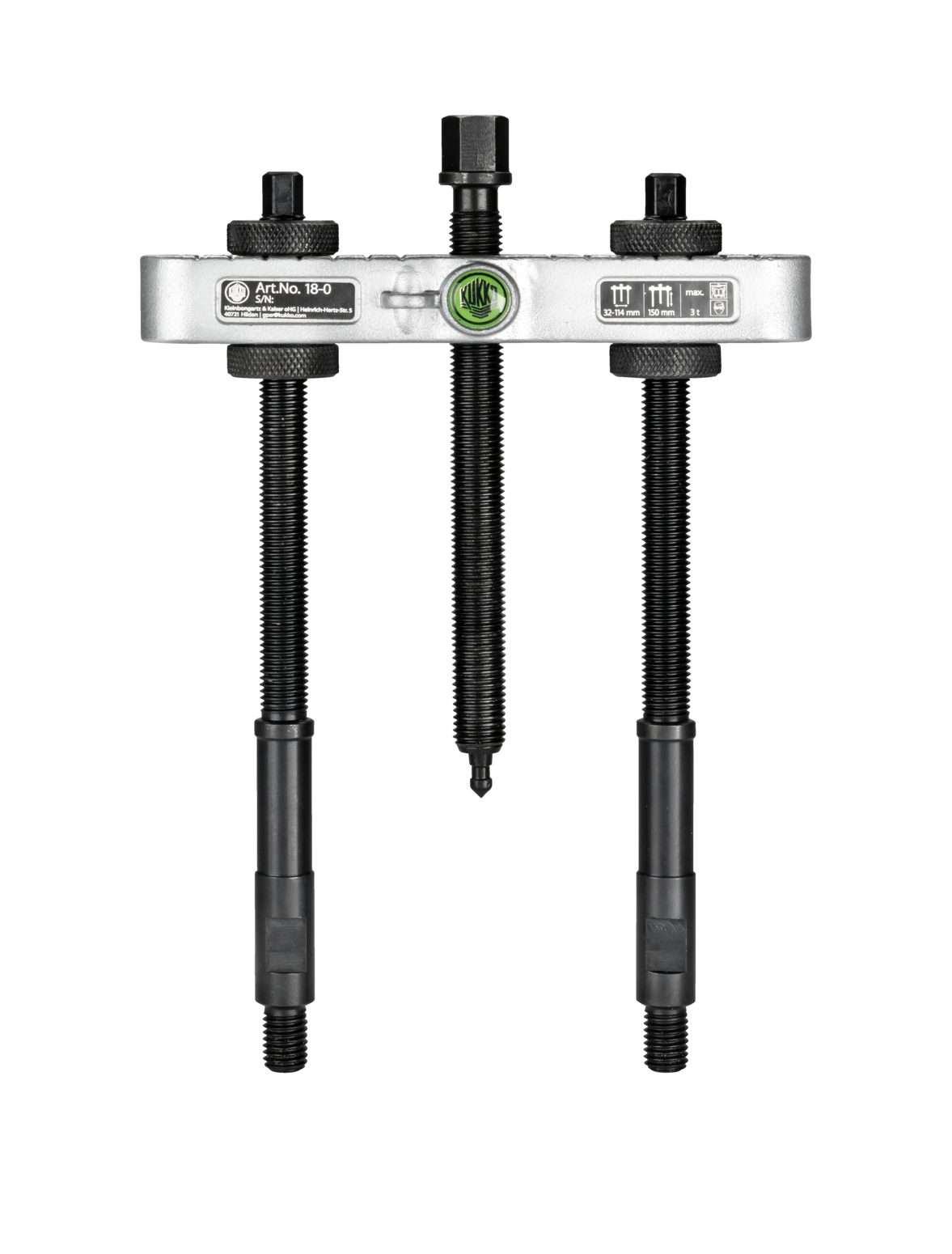

Kukko 18‑0 Mechanical Puller Device is engineered to work with Series 15 and 17 separators for removing flat‑lying or thin‑walled components in tight spaces where hook-style pullers cannot fit. It offers clean, damage-free extraction using concentric force and easy-to-adjust side bolts.
Technical Features:
-
Puller span adjusts between 32–114 mm (1¼–4½ in)
-
Clamping depth of 150 mm (5 7/8 in)
-
Maximum tensile force: 30 kN (3 t)
-
Torque rating up to 40 Nm
-
Compact and lightweight at approximately 0.825 kg (1.8 lb)
-

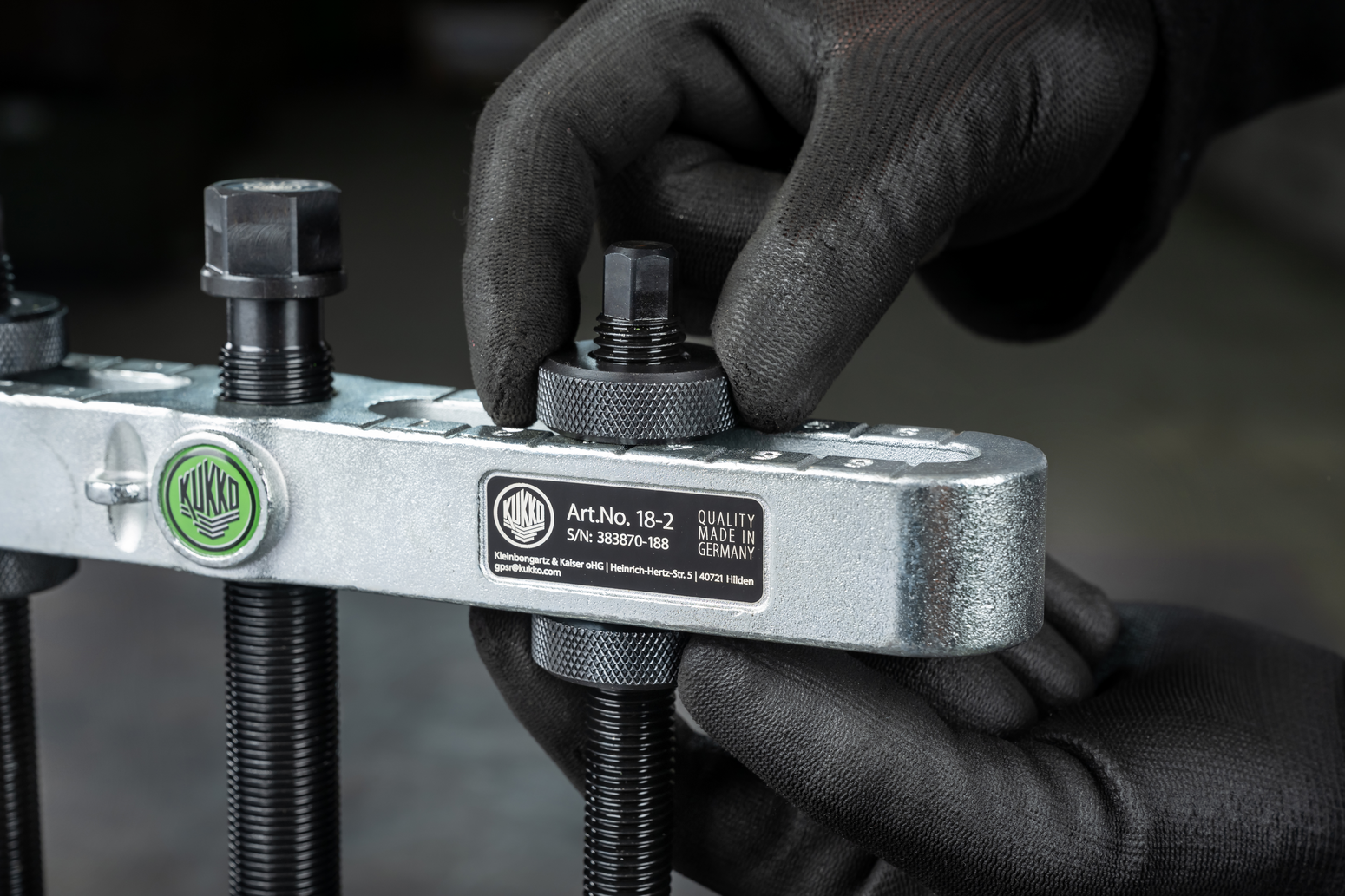

Scale on the crossbar for precise side-bolt adjustment
-
Compatible with Series 15‑0, 17‑0 separators and 18‑0‑AS thread adapters
Applications:
-
Extraction of flush-mounted or thin-walled parts like bearing races or bushings
-
Ideal for use in industrial machinery, motor maintenance, and precision dismantling
-
Designed for environments where access is limited and destructive methods must be avoided
FAQs:
Q: What components does this puller work with?
A: It’s designed to function with Kukko Series 15‑0 and 17‑0 separators for flush-part extraction.
Q: What size range can it handle?
A: Supports puller spans from 32 to 114 mm with up to 150 mm reach.
Q: Is it compatible with threaded components?
A: Yes—it works with the 18‑0‑AS thread adapter, allowing extraction of dowel pins, bolts, and threaded items.
