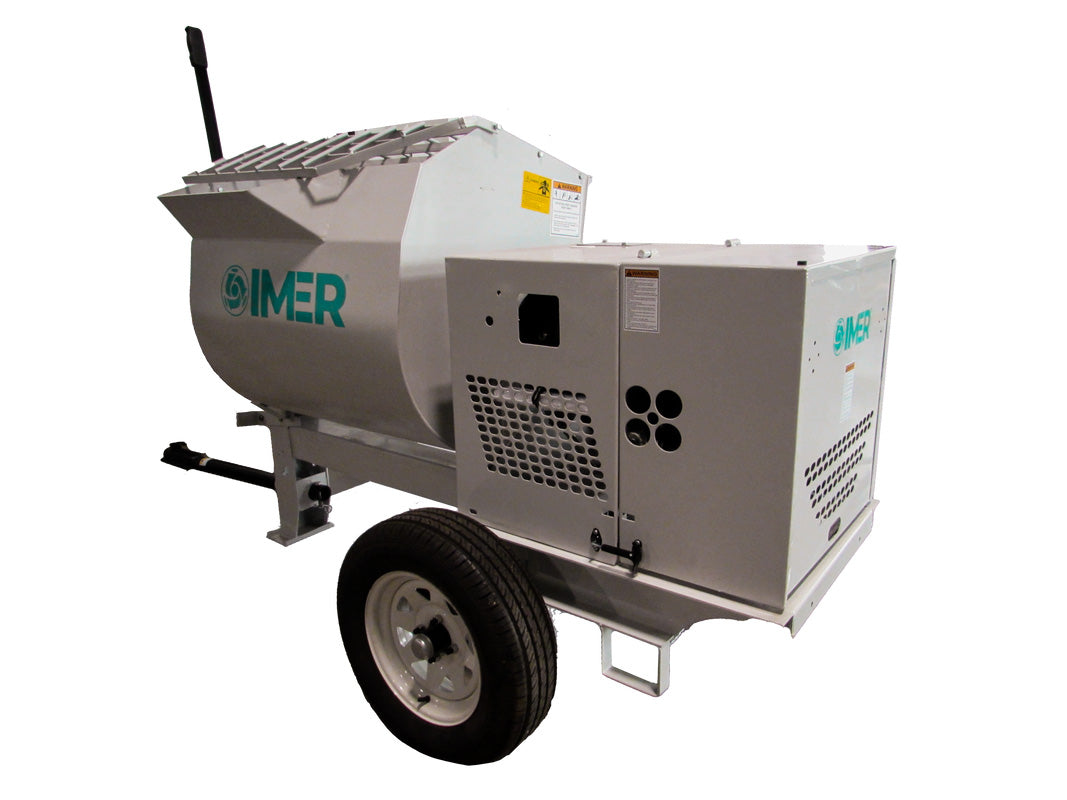

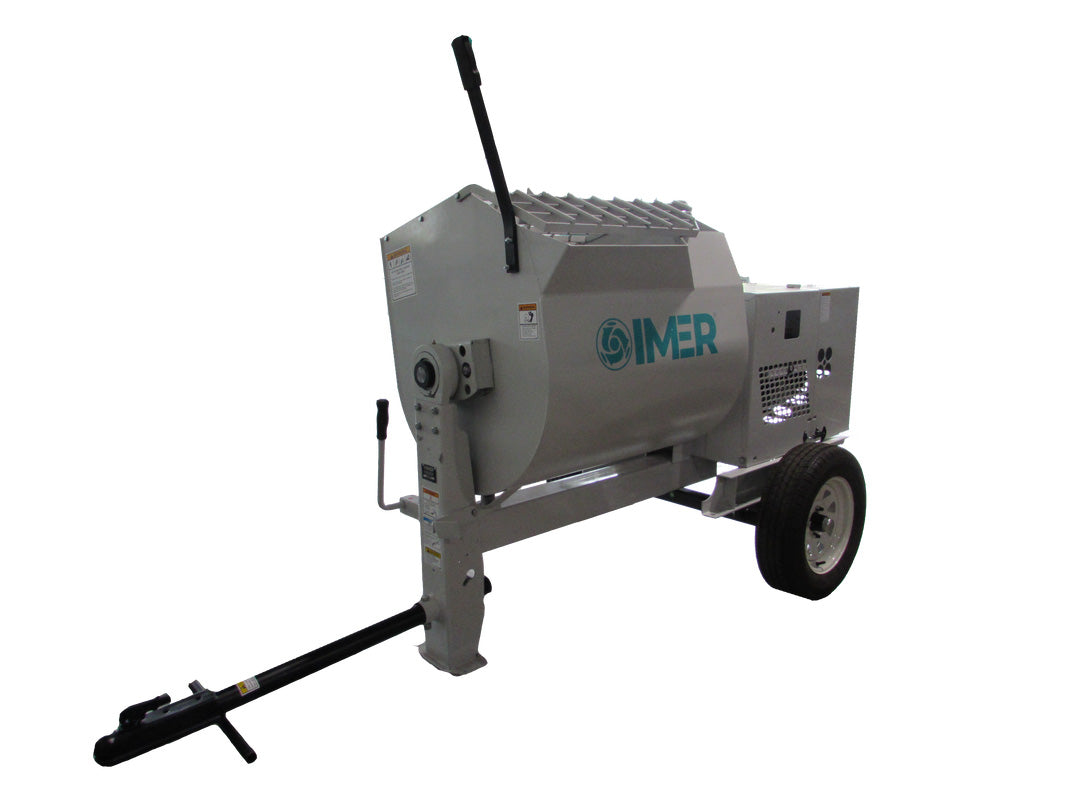

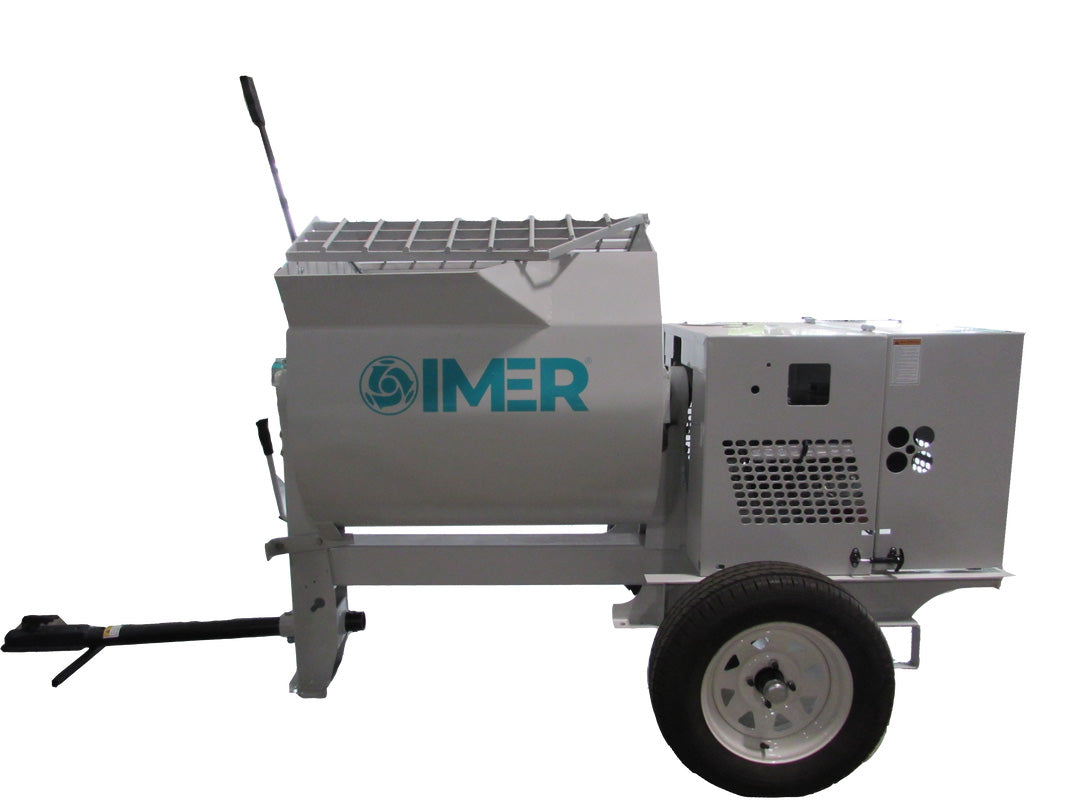

The IMER HSM 12 is a high-capacity, professional-grade mortar mixer designed for demanding commercial jobsites. Its horizontal-shaft mixing system and heavy-duty gearbox transfer power efficiently to the aggressive mixing paddles, producing consistent batches of mortar, stucco and grout.
Powered by a 13 HP Honda GX390 engine, this towable mixer delivers a 12 cu. ft. batch output and approximately 3.5–4 bag capacity. Forklift pockets and a choice of hitch configurations make transportation and jobsite positioning easier.
Key Features
-
12 cu. ft. batch output
-
Approximately 3.5–4 bag capacity
-
13 HP Honda GX390 gasoline engine
-
Heavy-duty steel mixing drum
-
Horizontal-shaft mixing system
-
Aggressive paddles for fast, complete mixing
-
Quiet enclosed gearbox reduces heat and gear wear
-
Extra-large safety grate
-
Locking dump handle for controlled unloading
-
External pillow-block bearings
-
Integrated forklift pockets
-
Towable commercial design
-
Choice of 2-inch ball or pintle hitch

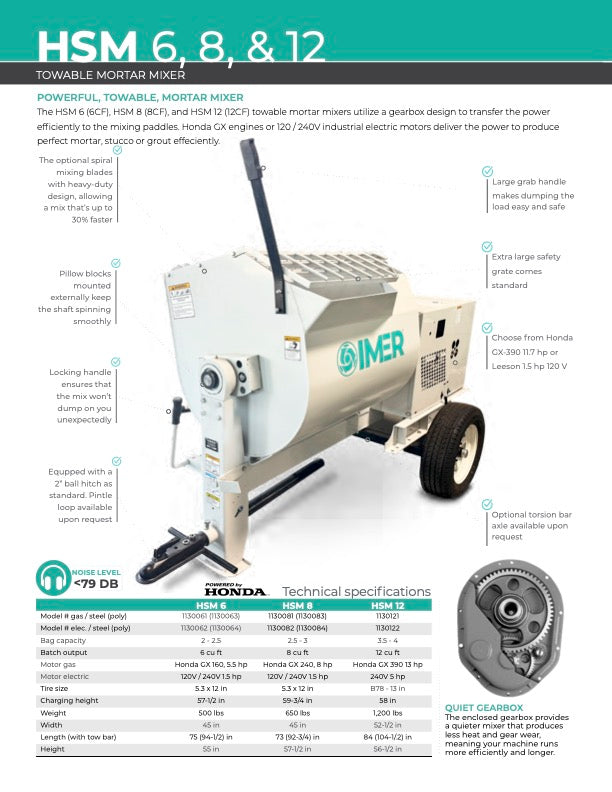

Specifications
-
Model: HSM 12 Gas
-
Manufacturer SKU: 1130121
-
Engine: Honda GX390
-
Engine output: 13 HP
-
Batch output: 12 cu. ft.
-
Bag capacity: 3.5–4 bags
-
Drum material: Steel
-
Tire size: B78-13
-
Charging height: 58 in.
-
Width: 52.5 in.
-
Length without tow bar: 84 in.
-
Length with tow bar: 104.5 in.
-
Height: 56.5 in.
-
Weight: Approximately 1,200 lb.
Available Factory Options
-
Tow bar with 2-inch ball hitch
-
Tow bar with pintle hitch
One hitch configuration must be selected when ordering.
Shipping Information
Standard commercial freight shipping within the contiguous United States is included.
This equipment ships by LTL freight. The carrier will contact the customer to arrange delivery. A valid telephone number is required, and the customer must be available to receive and inspect the shipment.
Residential delivery, liftgate service, limited-access locations and remote destinations may incur additional charges. Please contact us before ordering if any of these services are required.
Image Disclaimer
Images may show a different power source or hitch configuration. Please refer to the product title, SKU and specifications to confirm the exact model included.
Frequently Asked Questions
What materials can the HSM 12 mix?
It is designed for efficiently mixing mortar, stucco, grout and other compatible premixed materials.
How much material can it mix per batch?
The HSM 12 provides a 12 cu. ft. batch output and holds approximately 3.5–4 bags of material.
What engine powers this model?
SKU 1130121 is powered by a 13 HP Honda GX390 gasoline engine.
Does it include a hitch?
A hitch configuration must be selected when ordering. Choose either the 2-inch ball hitch or pintle hitch.
Can the mixer be moved with a forklift?
Yes. The HSM 12 includes forklift pockets to assist with handling and positioning.
Is freight included?
Standard commercial freight within the contiguous United States is included. Residential, liftgate, limited-access and remote delivery services may cost extra.
