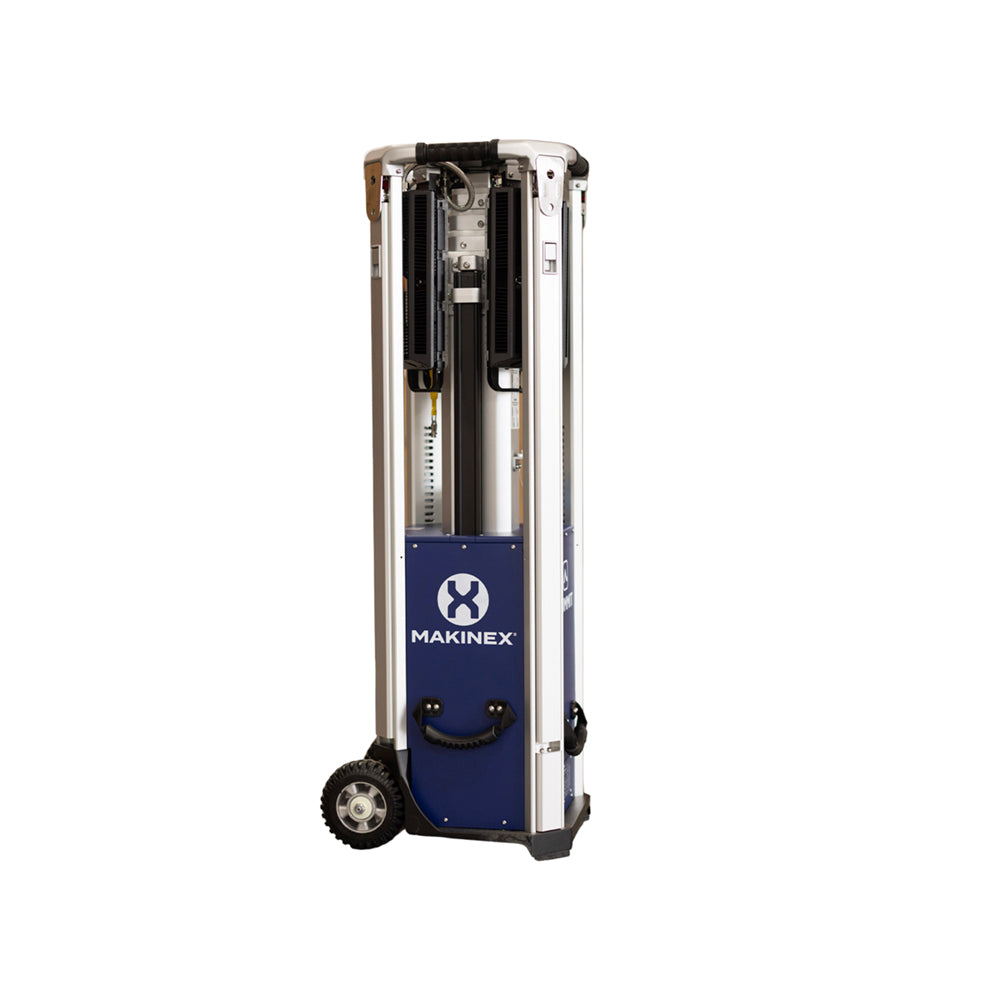

Makinex Sierra Portable LED Light Tower
The Makinex Sierra Light Tower delivers powerful, wide-area illumination in a compact and highly portable design. Producing up to 112,000 lumens, it can illuminate approximately 23,681 square feet—ideal for construction sites, farms, events, emergency response, security applications and nighttime maintenance.
Its electrically operated mast extends to 16.7 feet, while independently adjustable light heads provide flexible, targeted coverage. The tower weighs only 108 pounds and can be positioned and set up by one person.
Unlike engine-driven light towers, the Sierra operates silently and produces no exhaust emissions. It connects to a compatible external AC power supply, making it particularly suitable for residential areas, indoor applications, events and noise-restricted work sites.
Key Features
-
Powerful 112,000-lumen LED output
-
Illuminates up to approximately 23,681 square feet
-
Electrically operated mast extends to 16.7 feet
-
Mast rotates up to 340 degrees
-
Independently adjustable 360-degree light heads
-
Dimmable output for different lighting requirements
-
Silent, emission-free operation
-

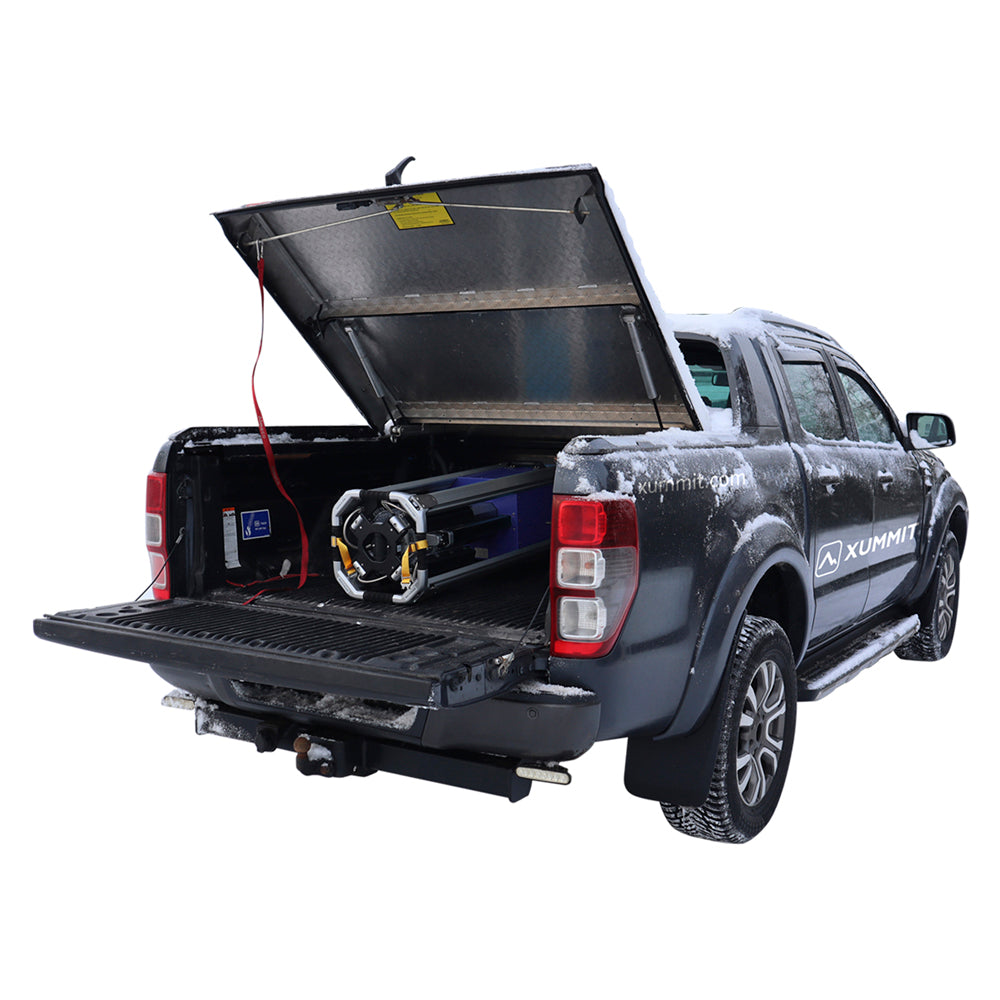

Compact design fits inside many standard work vehicles
-
Lightweight 108-pound construction
-
Designed for convenient single-person setup
-
Puncture-resistant wheels for jobsite mobility
-

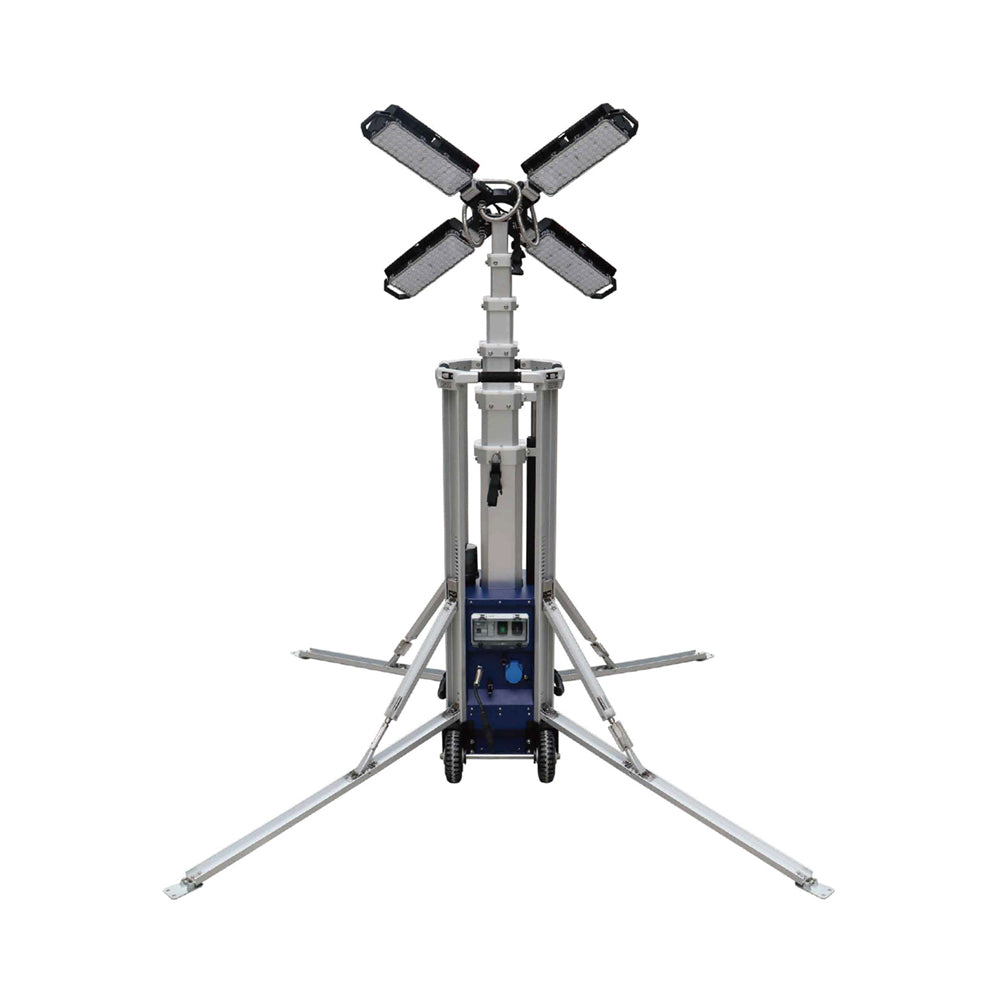

Locking stabilizers withstand winds up to 67.1 mph
-
Over-voltage, over-temperature and short-circuit protection
-
More than 100,000 hours of rated LED service life
-
CE and ETL certified
Suitable Applications
The Makinex Sierra Light Tower is well suited to:
-

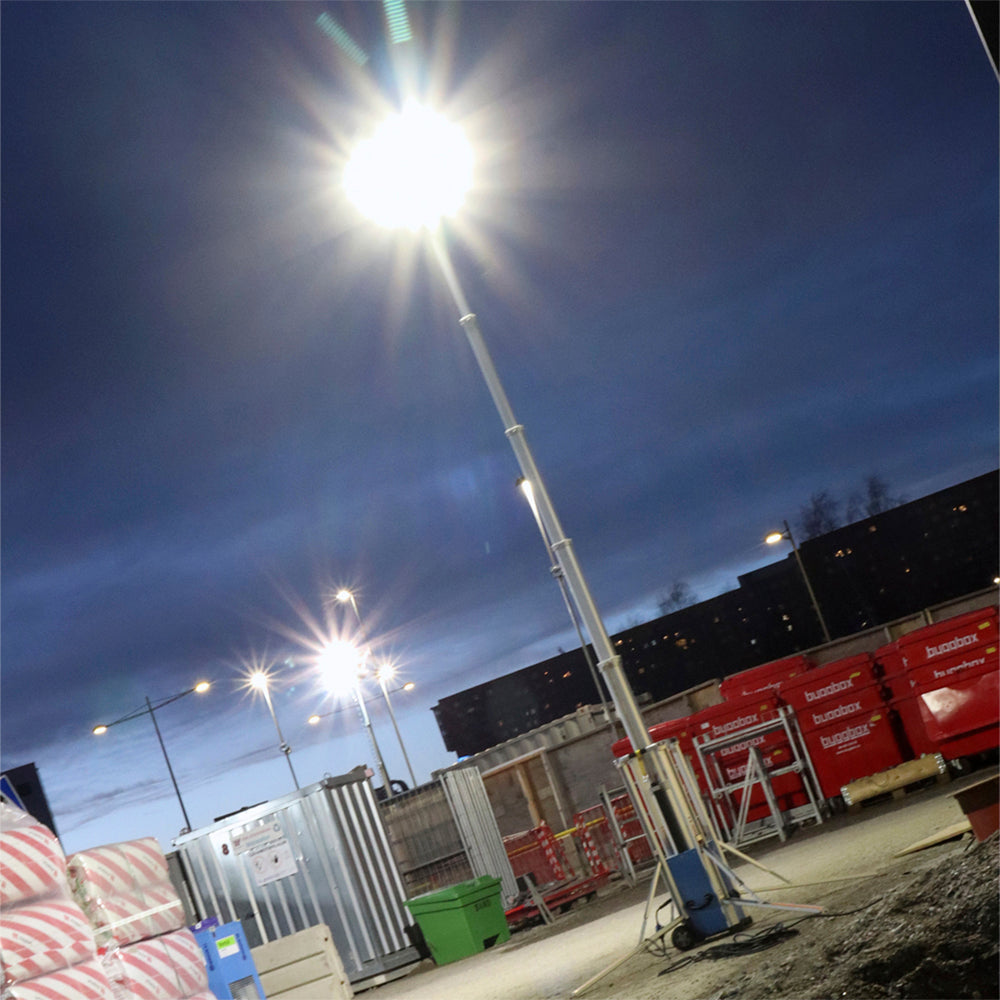

Construction and roadwork
-
Farms and rural properties
-
Emergency and disaster response
-
Outdoor events and festivals
-
Security and surveillance
-
Equipment maintenance
-

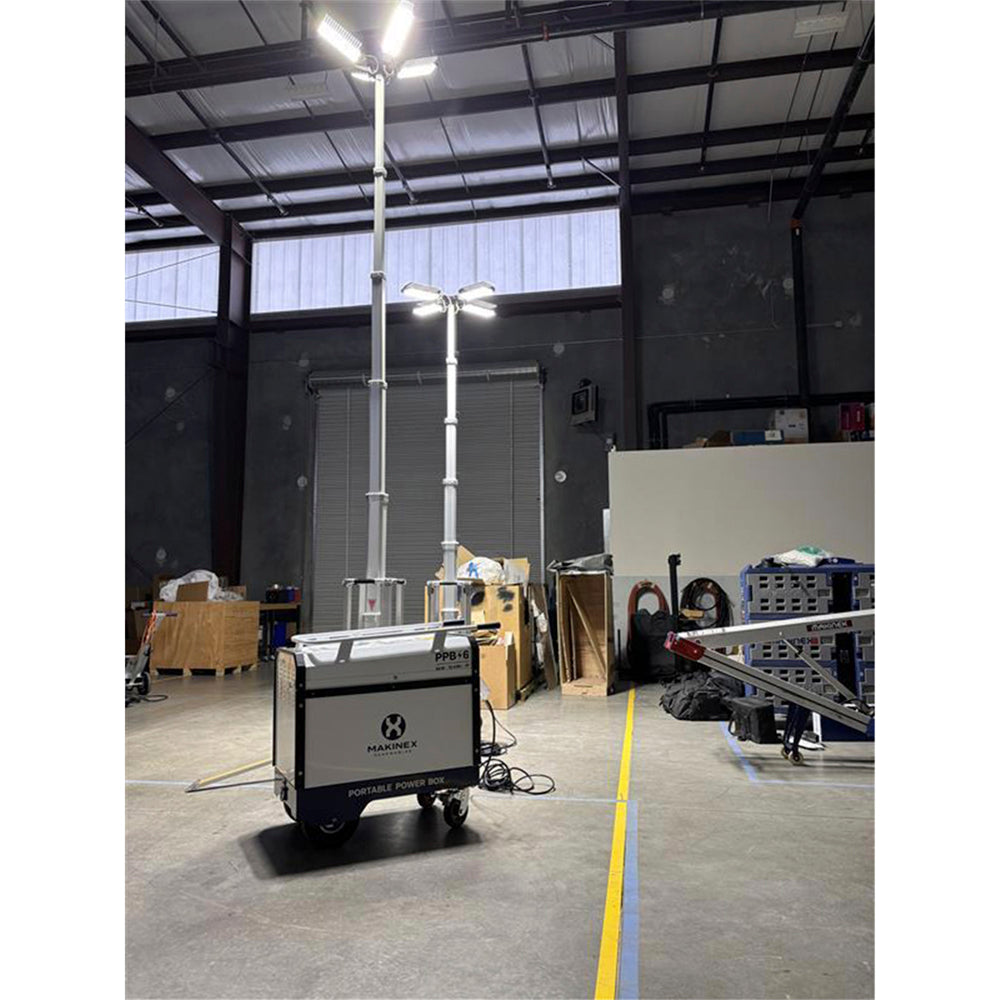

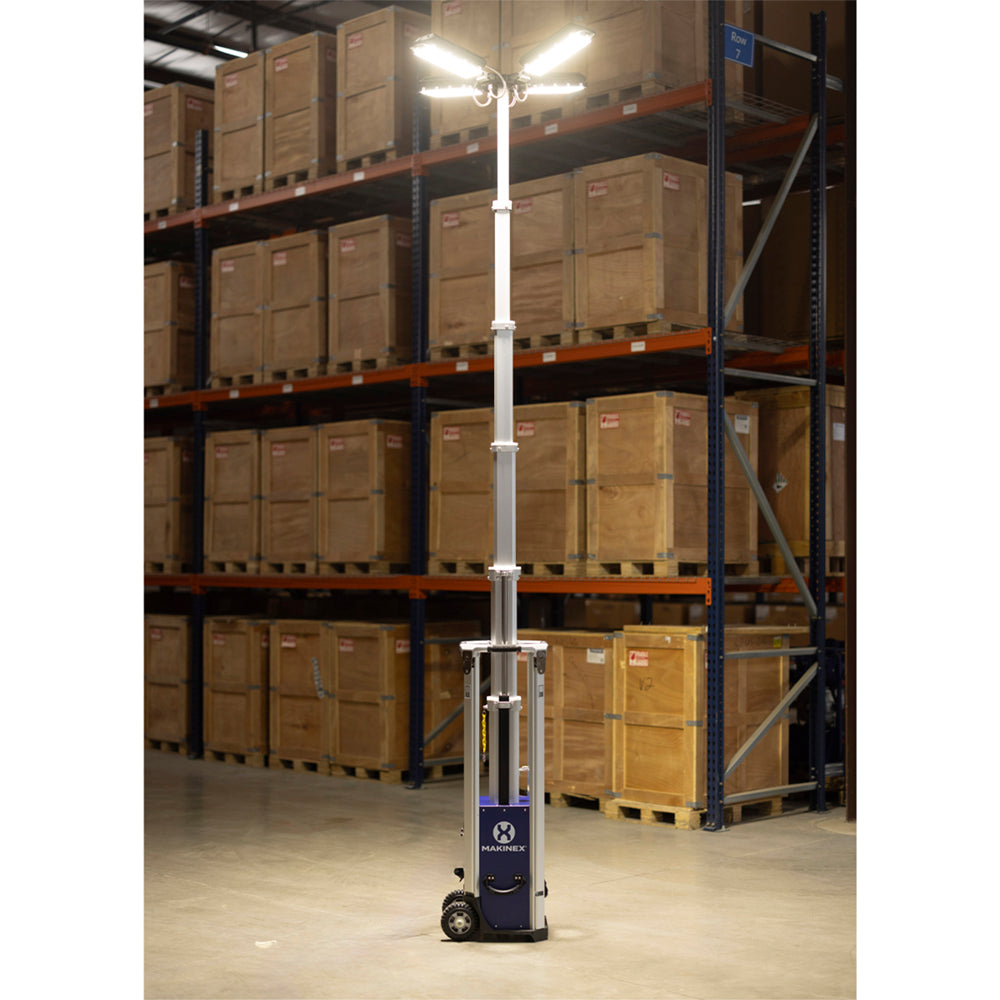

Warehouses and industrial facilities
-
Indoor and noise-sensitive work areas
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Makinex |
| Model | PLT-800 / PLT-800-US |
| Equipment Type | Portable LED site light tower |
| Light Output | 112,000 lumens |
| Illuminated Area | Approximately 23,681 sq. ft. |
| System Power | 800W |
| Operating Voltage | 100–305VAC, 50–60Hz |
| Color Temperature | 5000K |
| Dimmable | Yes |
| Maximum Height | 16.7 ft. |
| Mast Elevation | Electric |
| Mast Rotation | 340 degrees |
| Light-Head Rotation | 360 degrees |
| Wind Resistance | Up to 67.1 mph |
| Operating Noise | Less than 5 dB(A) |
| Lighting Protection Rating | IP65 |
| Chassis Protection Rating | IP54 |
| Impact Rating | IK08 |
| Operating Temperature | -22°F to 113°F |
| Storage Temperature | -40°F to 176°F |
| LED Service Life | More than 100,000 hours |
| Dimensions | 63 × 32 × 25 in. |
| Weight | 108 lb. |
| Certifications | CE and ETL |
| GNE SKU | GWG311781 |
Power Requirement
The Sierra Light Tower does not contain an onboard generator or battery. It must be connected to a suitable external AC power source. Confirm that the supplied plug configuration and available power supply are appropriate for your application before ordering.
Delivery Information
This product ships directly from the supplier. Delivery is available within the contiguous United States. Additional charges may apply for residential, limited-access, remote or unusually difficult delivery locations.
Inspect the shipment carefully at delivery and record any visible damage on the carrier’s delivery receipt before signing.
Frequently Asked Questions
Does the Sierra Light Tower include a generator?
No. The tower is powered by a compatible external AC electrical supply. This allows it to operate silently and without engine exhaust.
How much area can it illuminate?
The tower can illuminate approximately 23,681 square feet under suitable conditions.
How high does the mast extend?
The electrically operated mast extends to approximately 16.7 feet.
Can one person move and set it up?
Yes. The compact 108-pound design, wheels and stabilizer system are designed to allow convenient single-person transportation and deployment.
Can the light direction be adjusted?
Yes. The mast rotates up to 340 degrees, and the individual light heads can rotate through 360 degrees for targeted coverage.
Is the light output adjustable?
Yes. The LED lighting system is dimmable.
Can it be used outdoors?
Yes. The lighting carries an IP65 protection rating, while the chassis is rated IP54. The stabilizer system is rated to resist winds up to 67.1 mph when correctly deployed.
