Please note: This item ships directly from Italy and is not eligible for return. Estimated delivery time is approximately 6–7 weeks.

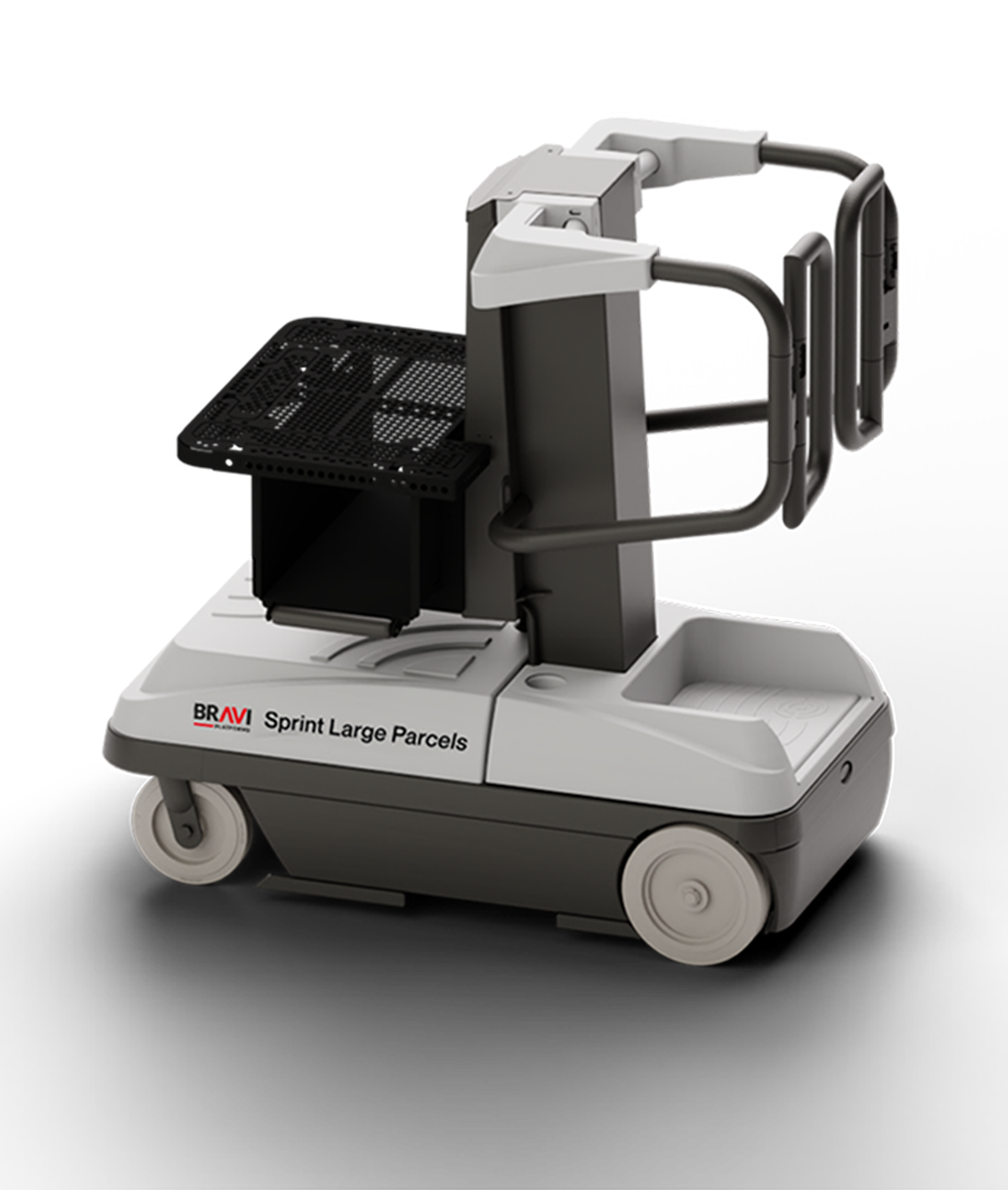

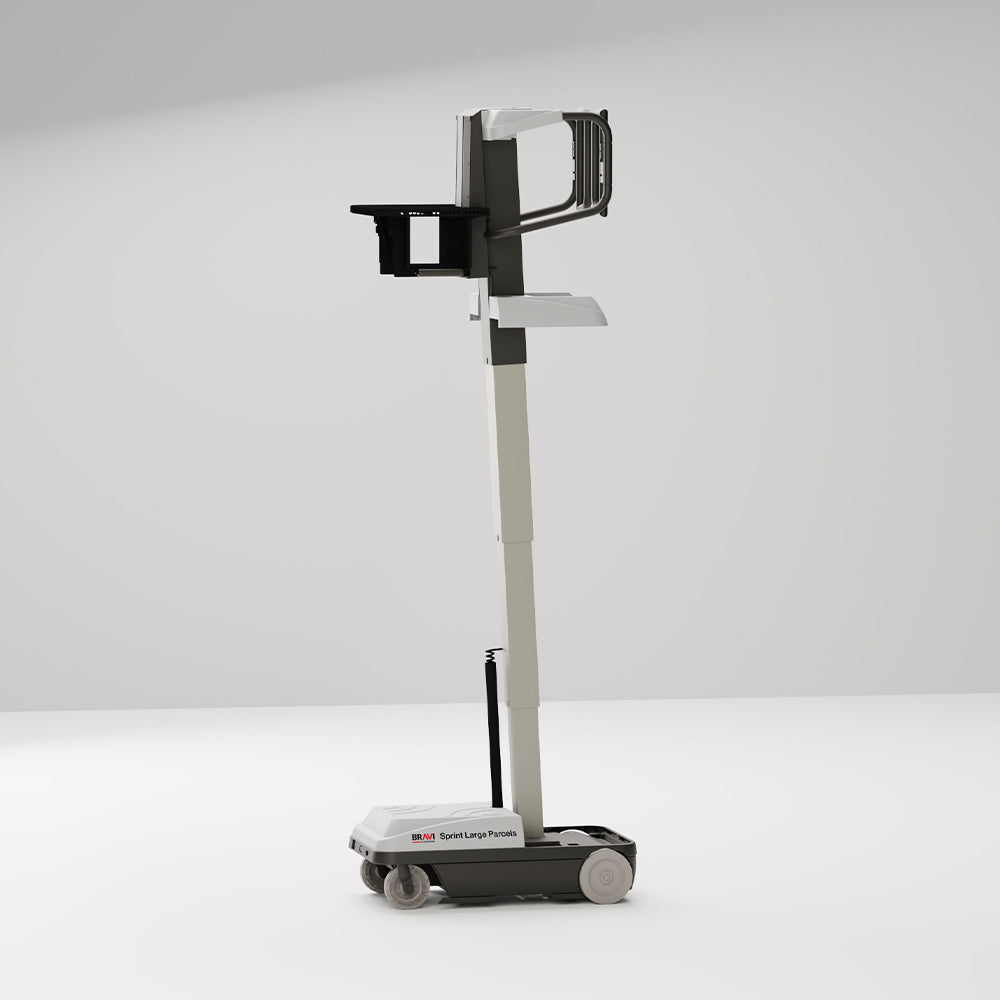

Bravi Sprint Large Parcels (Sprint LP) is a compact, self-propelled order picker built for bulky or oversized packages. It keeps Sprint’s zero-turn agility and maintenance-friendly mast while adding an extra-large, motorized parcel deck with side rollers for faster, safer handling.
Key Features
- Working height: up to 17.6 ft (5.35 m); platform height: 10 ft 11 in (3.35 m)
- XL motorized parcel deck with side rollers, capacity up to 198 lb (90 kg)
- Operator platform capacity: 286 lb (130 kg)
- Zero inside turning radius; travel speed 3.1 mph (5 km/h) stowed, 0.75 mph (1.2 km/h) raised
- Maintenance-friendly lifting system with onboard diagnostics
- Compact footprint for narrow aisles and back-of-store picking
Specifications
- Dimensions: L 1,500 mm (59.1 in) × W 776 mm (30.6 in)
- Stowed height: 1,440 mm (56.7 in) • Entry step: 360 mm (14.2 in)
- Large parcel deck: width 401 mm; deck height 334 mm
- Foldable load tray: 600 × 700 mm (23.6 × 27.6 in)
- Turning radius: inside 0 / outside 1,600 mm
- Gradeability (elevated): 2%
- Power/charger: 110–220 Vac → 24 Vdc
- Unit weight: ~714 kg (≈1,574 lb)
Batteries & Options
- Battery pack: premium 245 Ah for long duty cycles
- Battery types: AGM or Li-ion (factory options)
- Popular add-ons: safety lighting, keypad access, scanner holder, bumper protection, storage bin, trailer hook & two-wheel trailer
Certifications
Maintenance-friendly mast/lifting system. CE/UL/CSA certification packages available; documentation supplied with the unit.
Warranty Policy
-
1 Year – Batteries
-
1 Year – Labor
-
3 Years – All Spare Parts
-
10 Years – Mast, Cylinder, and Wear Pads
Service Contact: After-Sales Department, Toll Free 855 704 7342 (ext 212)
Optional Accessories for Sprint:
Enhance your Sprint with add-ons designed to improve efficiency, safety, and handling for a wide range of workplace tasks.
Magnetic Storage Bin
Durable, easy-to-attach bin with a strong magnetic mount. Compatible with all Bravi models, it provides convenient extra storage right where you need it.
Side Guide Rollers
Available in three lengths (89 cm / 2.9 ft, 95 cm / 3.11 ft, and 105 cm / 3.44 ft). These rollers improve maneuverability and protection when working in narrow aisles or close to shelving.
Suction Gun
Boosts efficiency when handling hard-to-reach items, making picking operations faster and easier.
Wheel Locking System
Works with side guide rollers to secure the front casters in a straight position for added stability.
Complete Gate Interlock
Automatic locking system that engages when the platform is raised. If the gate doors are open, all machine functions are disabled for safety.
Gate Sensor
Audible alarm that activates if the gate is left open while the platform is elevated, enhancing operator safety.
Trailer Hook with Step
Works with the trailer attachment to provide towing capacity up to 200 kg (440 lbs). Driving functions are automatically disabled when the platform is raised for added safety.
2-Wheel Steer Trailer
Durable trailer designed for use with the trailer hook and step. Provides smooth maneuverability and reliable transport of loads within facilities.
Clothes Hanger
Specialized hanging bar designed for warehouses and retail environments. Provides a practical solution for transporting and organizing garments directly on the Sprint.
Iron Bumper Protection Kit
Set of three reinforced metal bumpers designed to shield the sides of the hood, adding extra durability in demanding environments.
LED Lights
Bright, energy-efficient LED lighting system for enhanced visibility and safety when operating in low-light areas.
Safe-T-Lock Keypad Kit
Electronic keypad system that enhances operator safety by restricting access to authorized users only.
Presence Sensor
Safety system that prevents the platform from lowering if it detects someone standing beneath it.
Scanner Holder
Sturdy mount designed to securely hold barcode scanners, keeping them within easy reach during picking operations.
Bottle Holder
Convenient mount designed to securely hold bottles or canteens, keeping hydration within easy reach while working.
AGM or Li-ION Batteries
Choose between AGM or Li-ION battery options to match your operational needs and optimize performance.
FAQs
-
What’s the difference between Sprint and Sprint LP?
Sprint LP adds an extra-large, motorized parcel deck with side rollers for oversized boxes while retaining the compact footprint and zero-turn steering of Sprint. -
What are the height and capacity ratings?
Working height up to 17.6 ft; platform capacity 286 lb. The parcel deck supports up to 198 lb. -
How narrow can my aisles be?
The unit width is 776 mm (~30.6 in) with a zero inside turning radius. Ensure additional clearance for racking, corners, and safe operation. -
Which batteries are available?
AGM or Li-ion configurations are available, both paired with an onboard charger (110–220 Vac → 24 Vdc). -
What is the current lead time?
Typical lead time is 6–7 weeks while units ship from Italy. We’ll confirm at order time. -
Can you quote a delivered total?
Yes. We quote delivered pricing (freight & applicable sales tax included). Share the ship-to ZIP and whether delivery is to a dock or needs liftgate service. -
Is operator training required?
Follow your company’s powered industrial equipment policies. Operator and service documentation are provided with the unit.
