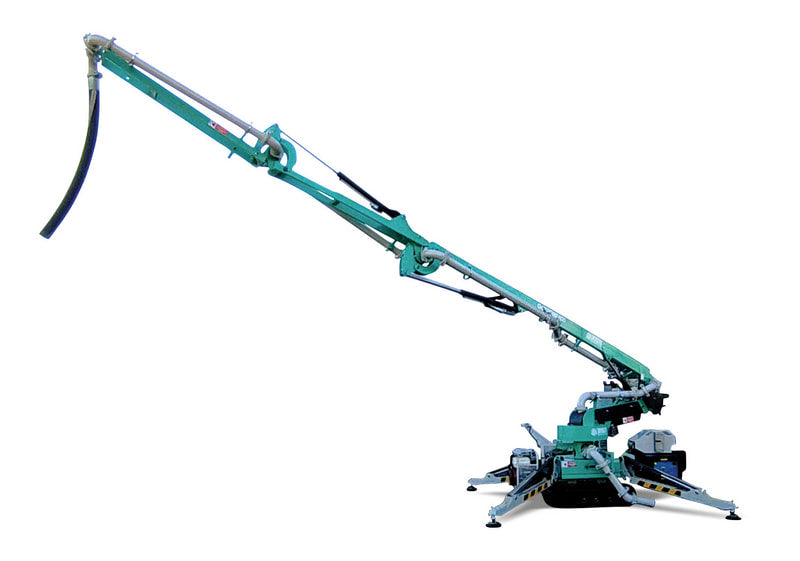

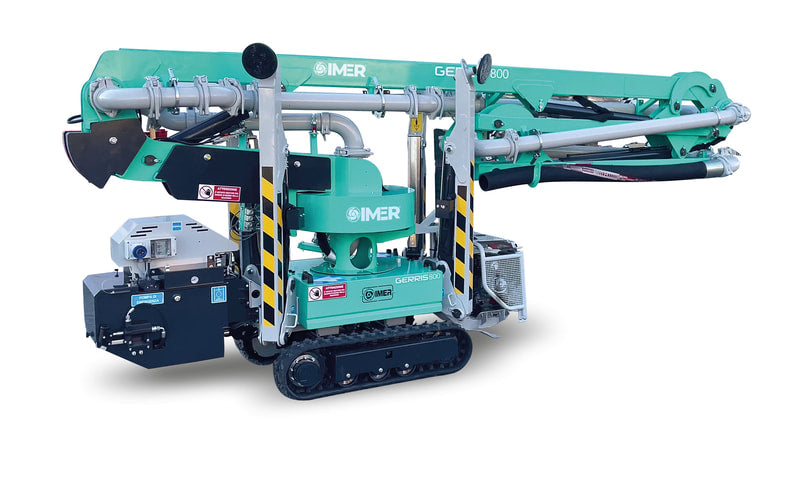

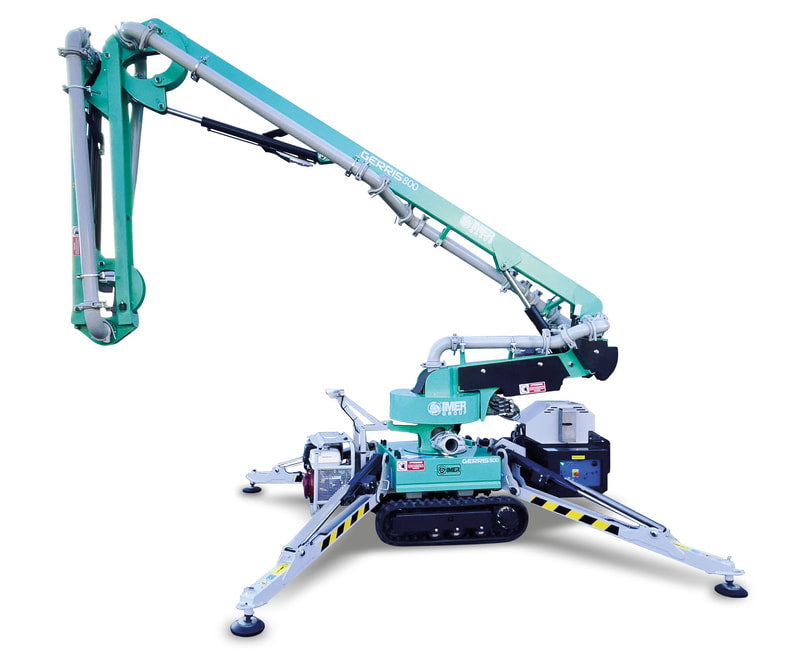

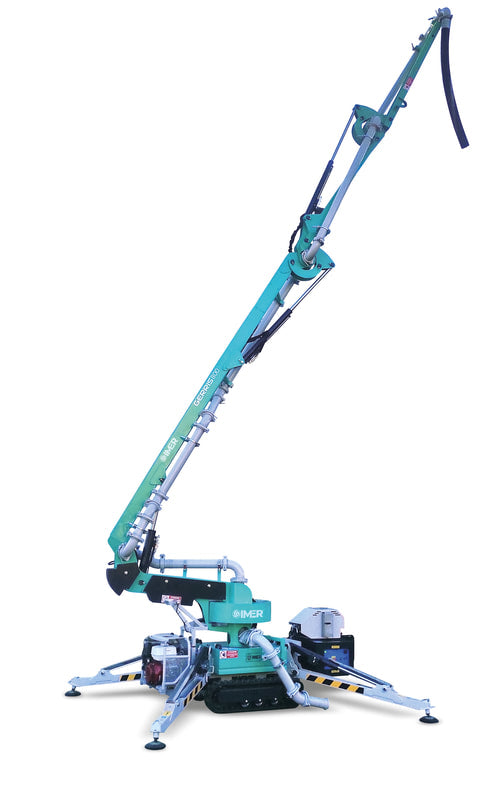

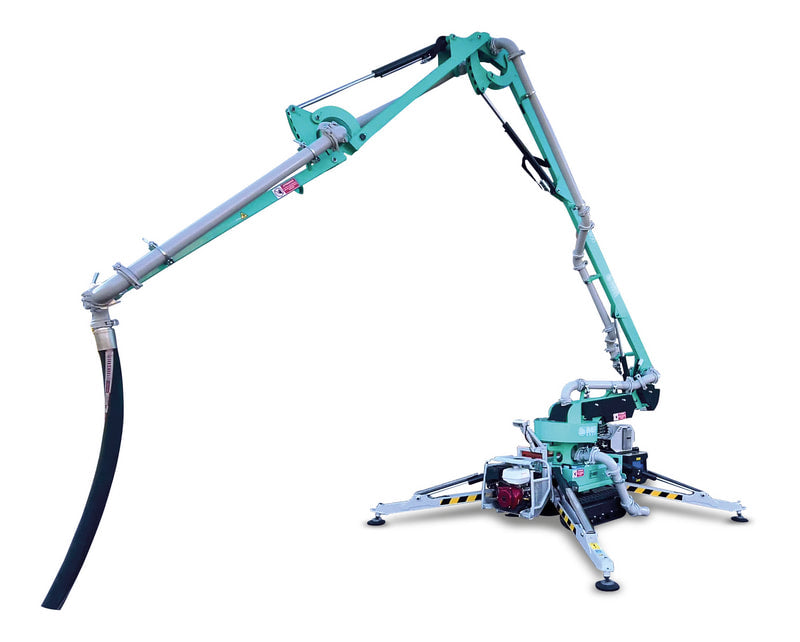

IMER Gerris 800 Lithium Crawler Concrete Placing Boom
The IMER Gerris 800 Lithium is a compact, self-propelled crawler concrete placing boom designed for accurately distributing pumped concrete across demanding commercial and industrial jobsites.
Its fully electric lithium power system produces no engine exhaust at the point of use, making it particularly well suited to enclosed buildings, warehouses, tunnels, underground projects and other areas where ventilation and noise are concerns.
Despite its compact transport footprint of approximately 2 ft 7 in wide by 16 ft 2 in long, the Gerris 800 Lithium provides a working range of approximately 26 ft 3 in and a maximum placing height of 36 ft 9 in. The articulated boom requires only approximately 9 ft 2 in of overhead space to open, allowing it to operate in low-clearance environments.
Wireless radio controls allow the operator to manoeuvre the crawler, position the boom and control the outriggers from a suitable viewing position.
Key Features
-
Fully electric 48V lithium-powered operation
-
No petrol exhaust emissions at the point of use
-
Suitable for indoor, enclosed and noise-sensitive projects
-
Self-propelled crawler undercarriage
-
Wireless radio remote control
-

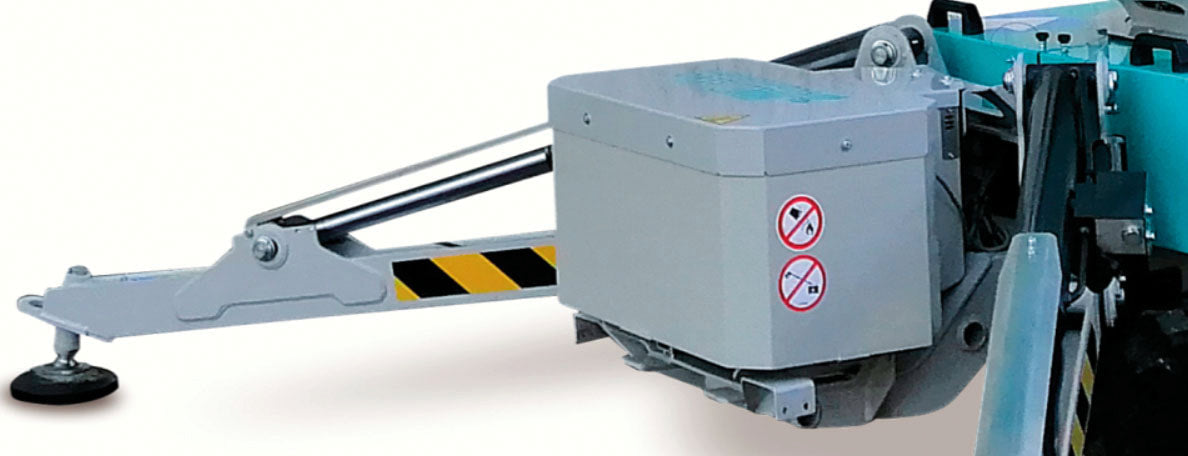

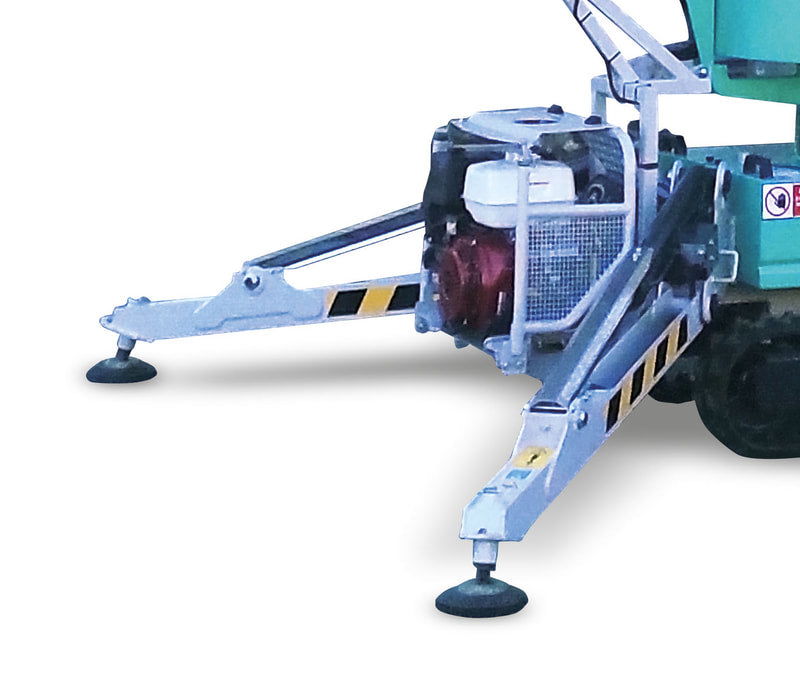

Automatic-levelling outriggers
-
Remotely expandable rubber tracks
-
Two travel speeds
-
Compact 2 ft 7 in transport width
-
Approximately 26 ft 3 in horizontal placing range
-
Maximum placing height of approximately 36 ft 9 in
-
Maximum placing depth of approximately 16 ft 5 in
-
Requires only approximately 9 ft 2 in of clearance to unfold the boom
-
355-degree turret rotation
-
Handles pumped concrete with aggregate up to 1 in
-
Connects to compatible concrete pumps using 4 in HD fittings
-
Maximum travel speed of approximately 1.6 mph
-
Gradeability up to 25%
-
Automatic warning and stopping system if excessive chassis inclination is detected
Specifications
-
Power system: Lithium battery
-
Electric motor: 48V AC, 5.4 HP
-
Maximum placing height: Approximately 36 ft 9 in
-
Maximum horizontal reach: Approximately 26 ft 3 in
-
Maximum placing depth: Approximately 16 ft 5 in
-
Minimum boom-opening clearance: Approximately 9 ft 2 in
-
Turret rotation: 355 degrees
-
Maximum aggregate size: 1 in
-
Concrete line connection: 4 in HD
-
Transport width: Approximately 2 ft 7 in
-
Transport length: Approximately 16 ft 2 in
-
Transport height: Approximately 6 ft 6 in
-
Stabilized footprint: Approximately 9 ft 7 in × 10 ft 1 in
-
Operating weight: Approximately 5,622 lb
-
Maximum travel speed: Approximately 1.6 mph
-
Maximum gradeability: 25%
-
SKU: 1128787
Standard Equipment
-
Integrated 48V lithium battery system
-
Wireless radio remote control
-
Automatic-levelling outriggers
-
Expandable rubber crawler tracks
Shipping Information
This machine is prepared and shipped on a pallet.
Free standard shipping is available to eligible commercial addresses within the contiguous United States. A loading dock or suitable unloading equipment is required. Residential, limited-access and other special delivery services are not included and may incur additional charges or may not be available for this machine.
Please contact us before ordering if the delivery location is residential, limited access, a construction site or requires liftgate or inside delivery. We will confirm delivery requirements and availability before shipment.
Final shipping weight and dimensions are confirmed once the machine has been packed and palletized.
