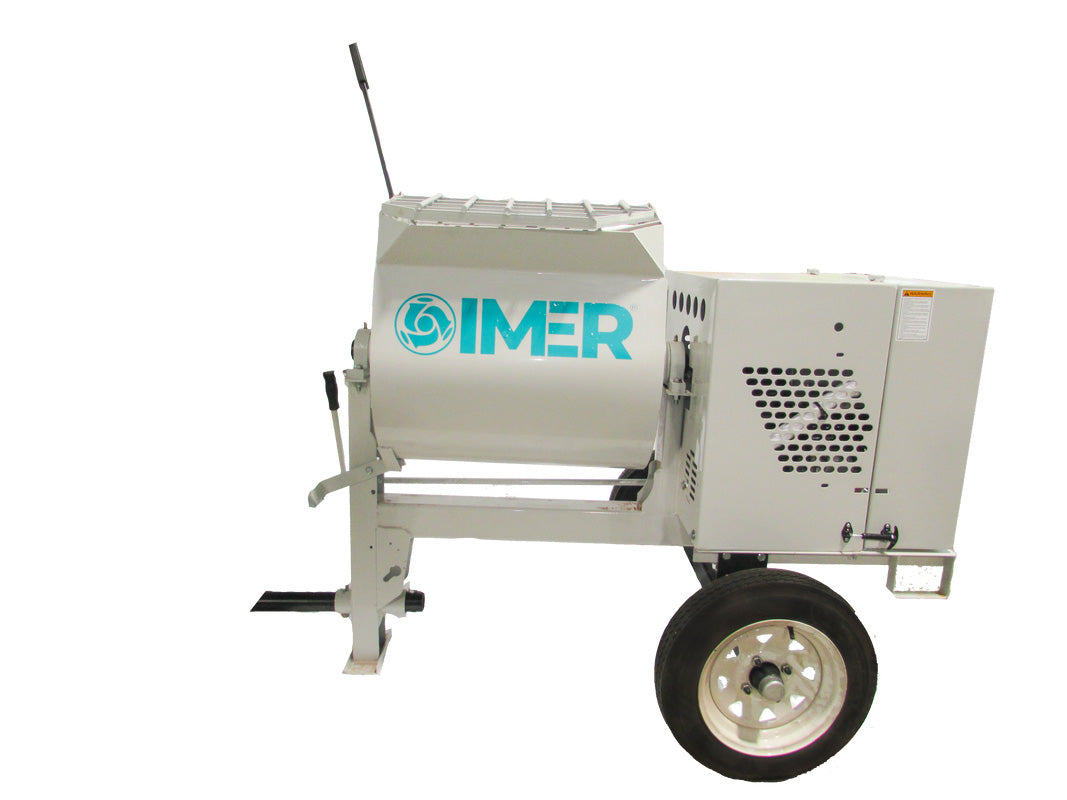

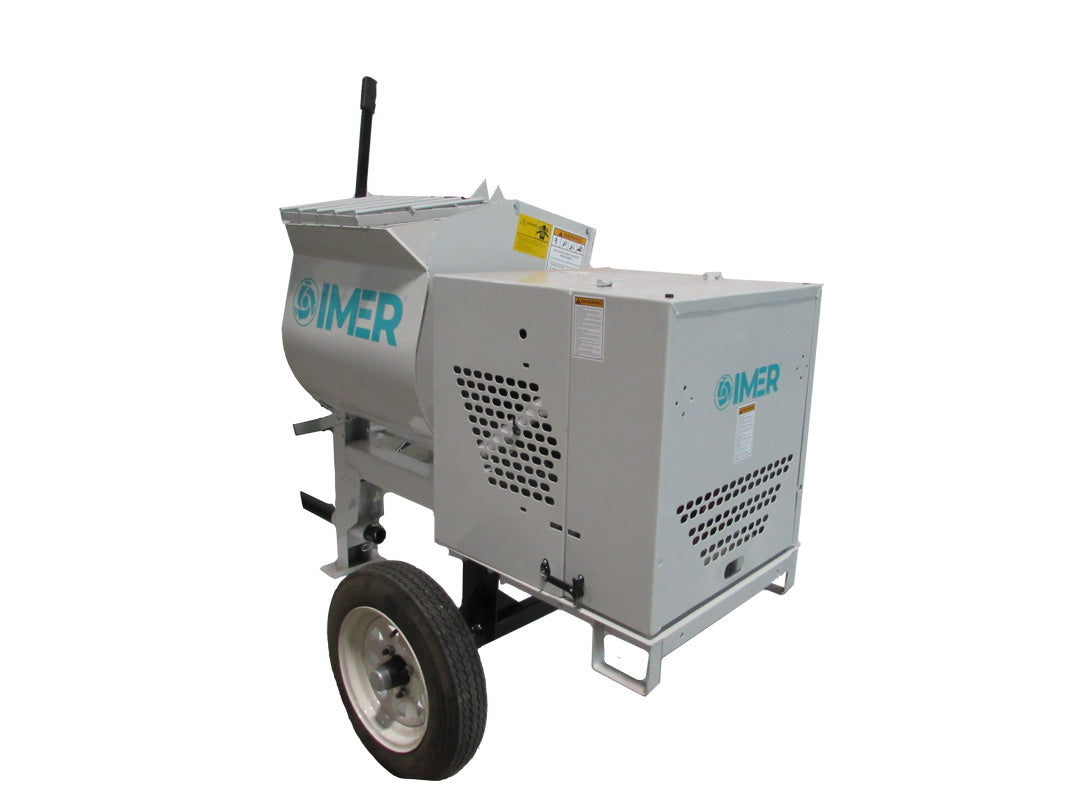

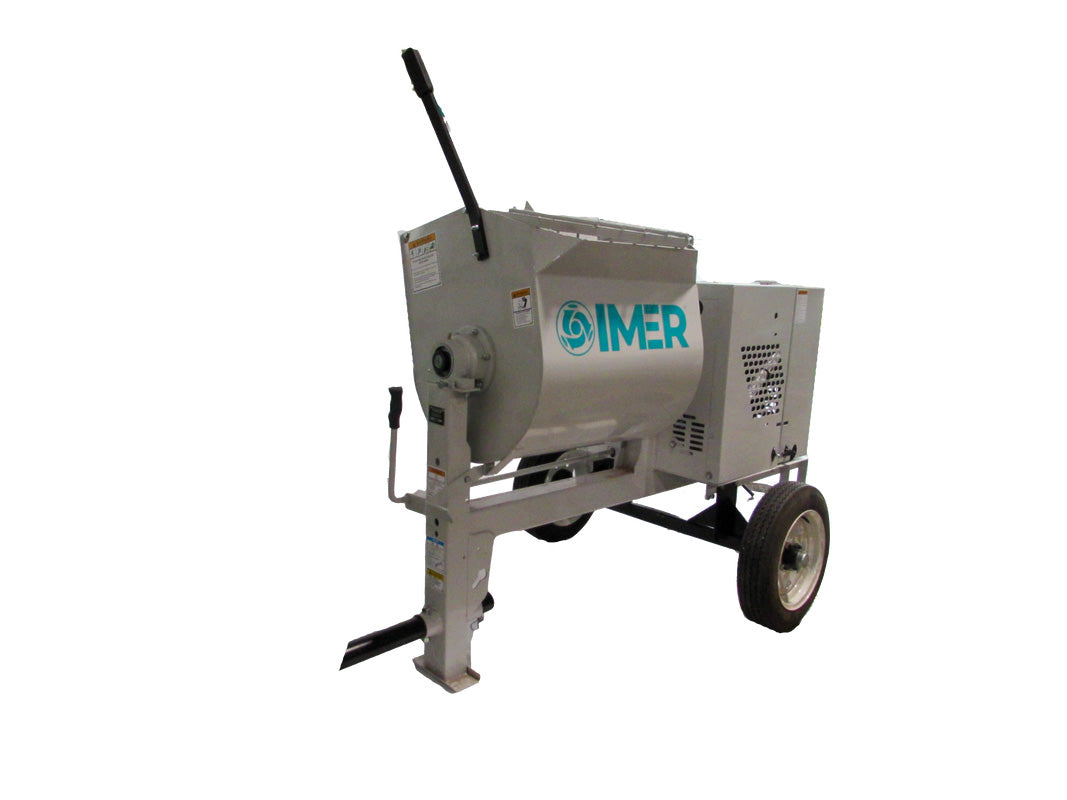

The IMER HSM 6 Electric is a professional-grade towable mortar mixer designed for contractors working with mortar, stucco, grout and other premixed materials. Its horizontal-shaft mixing system produces fast, consistent batches while the 1.5 HP electric motor offers quieter, emission-free operation for locations where gas-powered equipment may be unsuitable.
With a 6 cu. ft. batch output and approximately 2–2.5 bag capacity, the HSM 6 combines commercial mixing performance with a compact, towable design.
Key Features
- 6 cu. ft. batch output
- Approximately 2–2.5 bag capacity
- 1.5 HP 120V/240V electric motor
- Heavy-duty steel mixing drum
- Horizontal-shaft mixing system
- Suitable for mortar, stucco, grout and compatible premixed materials
- Towable jobsite design
- Quiet, emission-free operation
- Heavy-duty gearbox transfers power efficiently to the mixing paddles
- Replaceable mixing paddles
- Factory-installed poly tub upgrade available separately
Specifications
- Model: HSM 6 Electric
- Manufacturer SKU: 1130062
- Motor: 1.5 HP electric
- Voltage: 120V/240V
- Batch output: 6 cu. ft.
- Bag capacity: 2–2.5 bags
- Drum material: Steel
- Tire size: 5.3 × 12 in.
- Charging height: 57.5 in.
- Width: 45 in.
- Length: 75 in. without tow bar
- Length with tow bar: Approximately 94.5 in.
- Height: 55 in.
- Weight: Approximately 500 lb.
Available Options
- HSM 6 factory-installed poly tub upgrade – SKU 1131061
- HSM 6 tow bar with 2-inch ball hitch – SKU 1131062
- HSM 6 tow bar with pintle hitch – SKU 1131063
One hitch option must be selected if a tow bar is required.
Shipping Information
Standard commercial freight shipping within the contiguous United States is included.
This equipment ships by LTL freight. The carrier will contact the customer to arrange delivery. The customer must provide a valid telephone number and be available to receive and inspect the shipment.
Residential delivery, liftgate service, limited-access locations and remote destinations may incur additional charges. Please contact us before ordering if any of these services are required.
Image Disclaimer
Images may show another HSM 6 power configuration or optional accessories. Please refer to the product title, SKU and specifications to confirm the exact model included.
Frequently Asked Questions
Is this the electric version of the HSM 6?
Yes. SKU 1130062 is powered by a 1.5 HP electric motor rather than the Honda gas engine.
Can it operate on 120V power?
Yes. IMER specifies a 120V/240V electric motor. The electrical supply and extension cord must meet the manufacturer’s requirements.
What materials can it mix?
It is designed primarily for mortar, stucco, grout and compatible premixed materials.
Does it include a tow bar or hitch?
The tow bar and hitch should be selected separately. Choose either the 2-inch ball-hitch option or the pintle-hitch option.
Is a poly tub available?
Yes. A factory-installed poly tub upgrade is available as an optional add-on.
Is shipping included?
Standard commercial freight within the contiguous United States is included. Additional services may cost extra.
