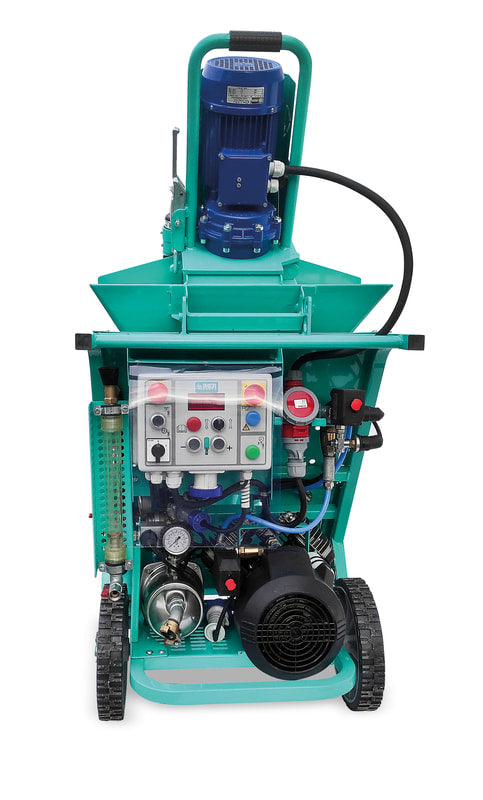

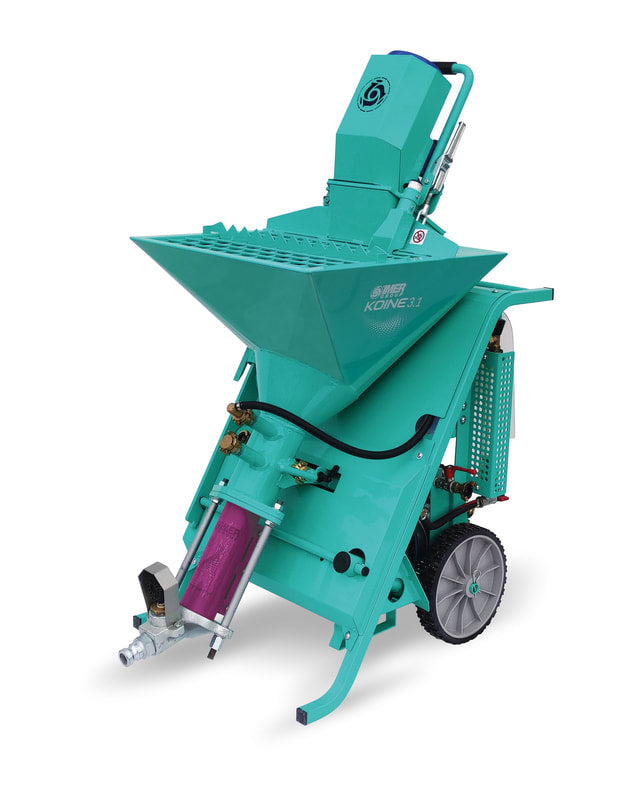

IMER Koine 3.1 Continuous Mixer and Pump
The IMER Koine 3.1 is a versatile 240V single-phase continuous mixer and pump designed for pre-blended cementitious and gypsum-based materials, including grout, mortar, stucco, fireproofing and self-leveling underlayments.
Its selectable wet and dry operating modes allow the Koine 3.1 to work as both a continuous mixing pump and a standalone material pump.
In dry mode, bagged material is loaded into the hopper, automatically mixed with a controlled supply of water and pumped continuously through the included material hose. In wet mode, premixed or ready-to-use material can be poured directly into the hopper and pumped without passing through the continuous mixing process.
The six-speed inverter control helps operators match output to the material, application and available electrical supply. Its compact footprint and wheeled design make the Koine 3.1 especially useful for interior projects, high-rise construction and jobsites with restricted access.
Key Features
-
Continuous mixing and pumping in one compact machine
-
Operates with dry bagged materials or premixed wet materials
-
4.5 HP maximum installed power
-
240V single-phase electrical supply
-
Six-speed IMER inverter control
-
Adjustable flow for different materials and applications
-
D8-1.5 rotor and stator included
-
Turbo mixer kit included
-
Material-delivery pressure gauge
-
Gear-driven feed impeller
-

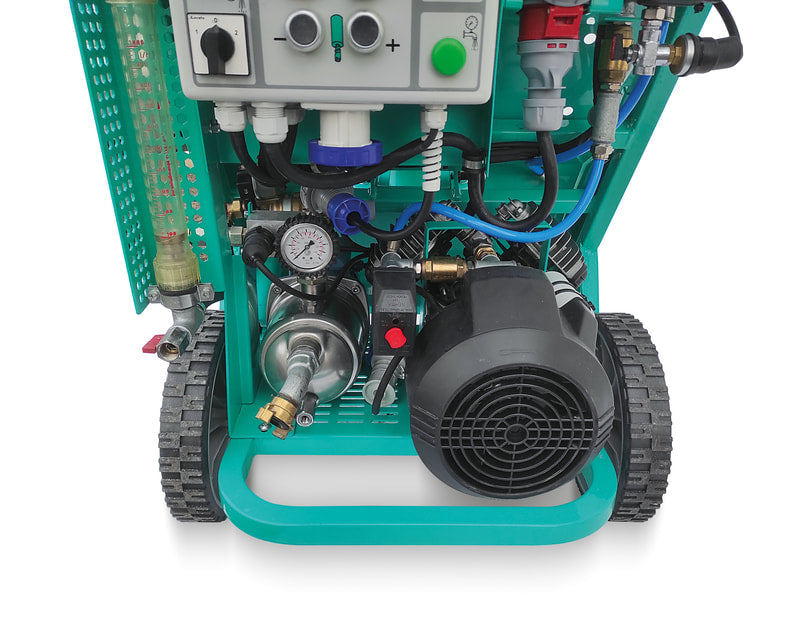

Self-priming water booster pump
-
Water-flow meter and drainage valves
-
50 feet of material hose included
-
66-foot power cord and water hose included
-
Compressor-ready for spraying applications
-

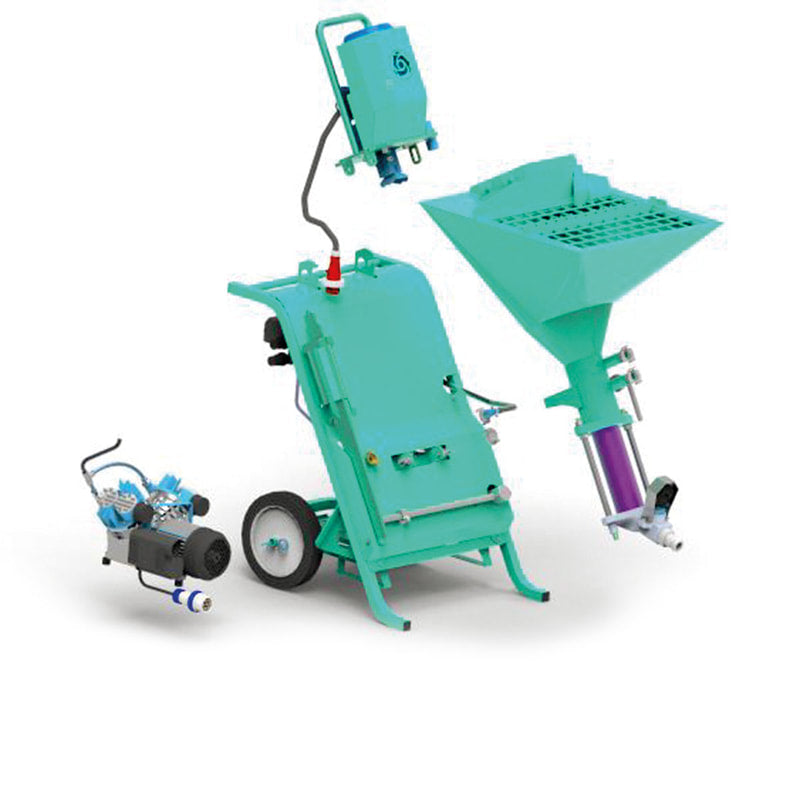

Compact and portable design
Applications
Depending on the material and selected accessories, the Koine 3.1 can be used for:
-
Pumping grout
-
Pumping self-leveling underlayments
-
Mixing and pumping cementitious mortars
-
Mixing and pumping gypsum-based materials
-
Spraying mortar and stucco base coats
-
Spraying fireproofing
-
Spraying waterproofing products
-
Applying stucco and finish coats
-
Grouting and injection work
An appropriate compressor, air hose and spray gun are required for spraying applications and are sold separately.
Specifications
-
Power supply: 240V, single phase
-
Maximum installed power: 4.5 HP
-
Mixer motor: 3 HP
-
Water-pump motor: 0.6 HP
-
Dry-mode output: Approximately 0.25–0.60 cu ft/min
-
Wet-mode output: Approximately 0.08–0.60 cu ft/min
-
Hopper capacity: 2.65 cu ft
-
Loading height: 39 in
-
Dimensions: Approximately 26 in W × 42 in L × 59 in H
-
Weight: Approximately 350 lb
-
Included rotor/stator: D8-1.5
-
Material-hose connection: 25 mm/1 in
-
SKU: 1106351
Standard Equipment
-
D8-1.5 rotor with tab and stator
-
Turbo mixer kit
-
Material-delivery pressure gauge
-
Gear-driven feed impeller
-

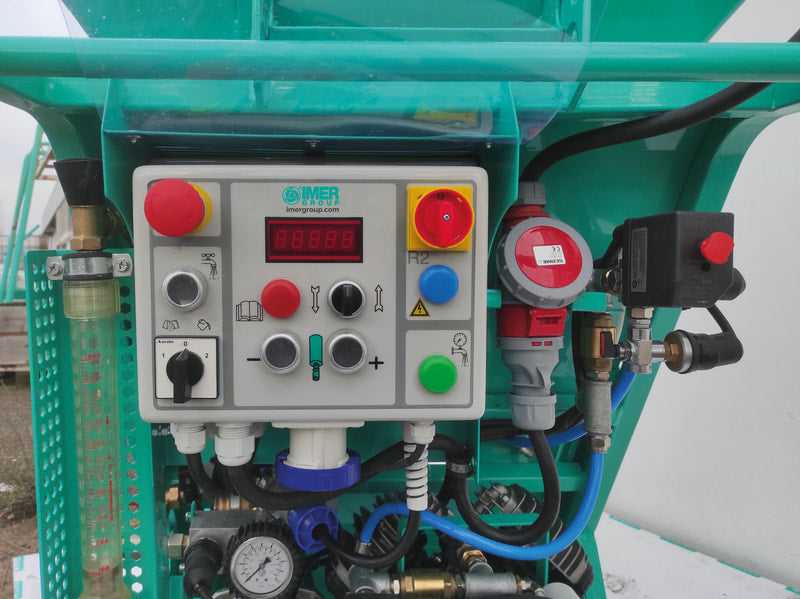

Control panel with IMER six-speed inverter
-
Self-priming water booster pump
-
Water system with flow meter and drainage valves
-
66-foot power cord
-
66-foot, 3/4-inch water hose
-
50-foot, 1-inch material hose
-
35 mm to 25 mm reducer
-
Hose-cleaning kit with toolbox
-
Mixing-chamber cleanout tool
-
Compressor-ready connection
Optional Accessories
Optional accessories are sold separately:
-
240V dual-diaphragm compressor – Part 1107699
-
Mortar, stucco and fireproofing gun kit – Part 1107005
-
Stucco and fine-coatings gun kit – Part 1107010
-
D5-2.5 rotor with tab – Part 1107162
-
D5-2.5 stator – Part 1107084
-
Five-foot overhead wand – Part 1107549
-
Additional material hoses in several lengths and diameters
Please contact us if you need help selecting the appropriate compressor, spray gun, hose or rotor/stator for your intended material.
Electrical Requirements
This machine requires a suitable 240V single-phase power supply. Confirm that the jobsite’s circuit, plug configuration and extension-cord capacity meet the manufacturer’s requirements before use.
