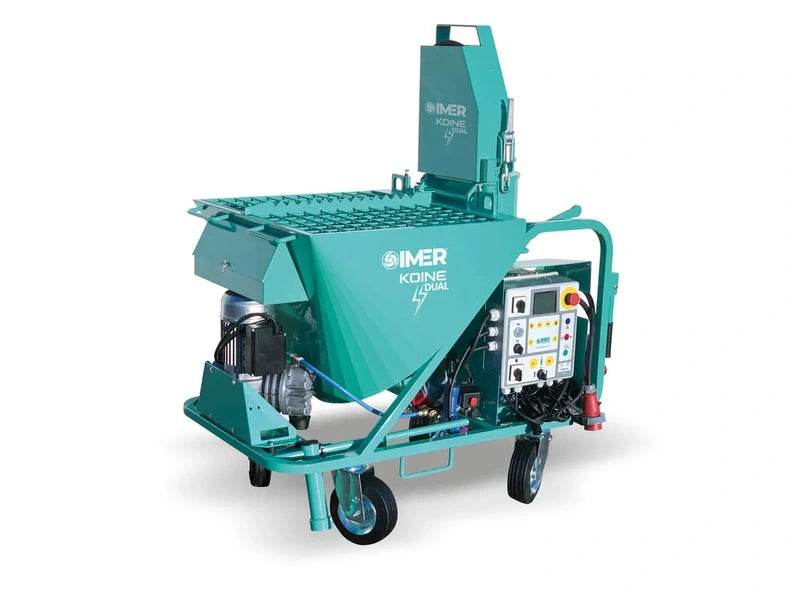

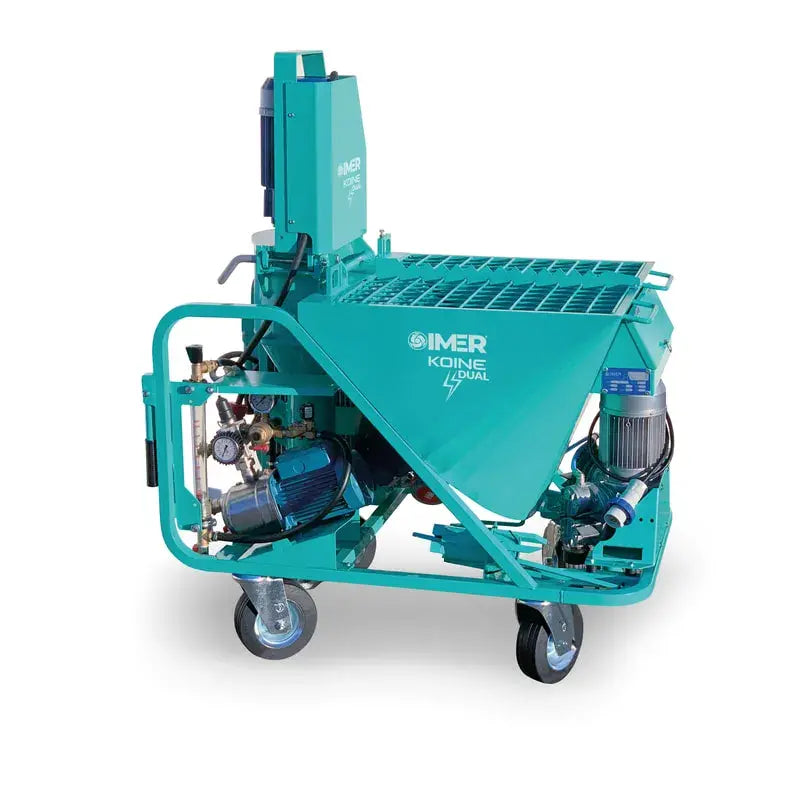

IMER Koine Dual High-Flow Continuous Mixer and Pump
The IMER Koine Dual is a high-output continuous mixer and pump designed for preblended cementitious materials, including grout, self-leveling underlayments, stucco, fireproofing and low-volume shotcrete.
Its dual-power capability allows the machine to operate from either a 208V three-phase or 240V single-phase electrical supply. This provides greater flexibility between jobsites without requiring contractors to purchase separate single-phase and three-phase machines.

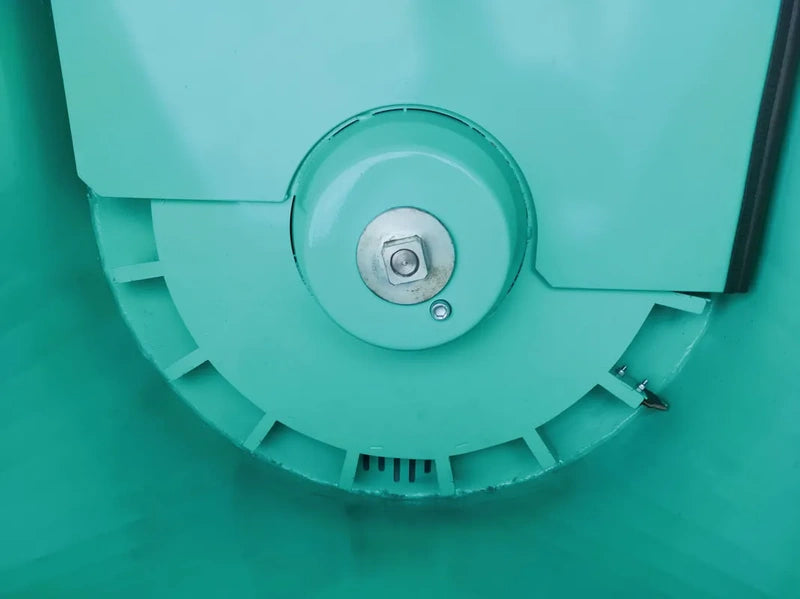

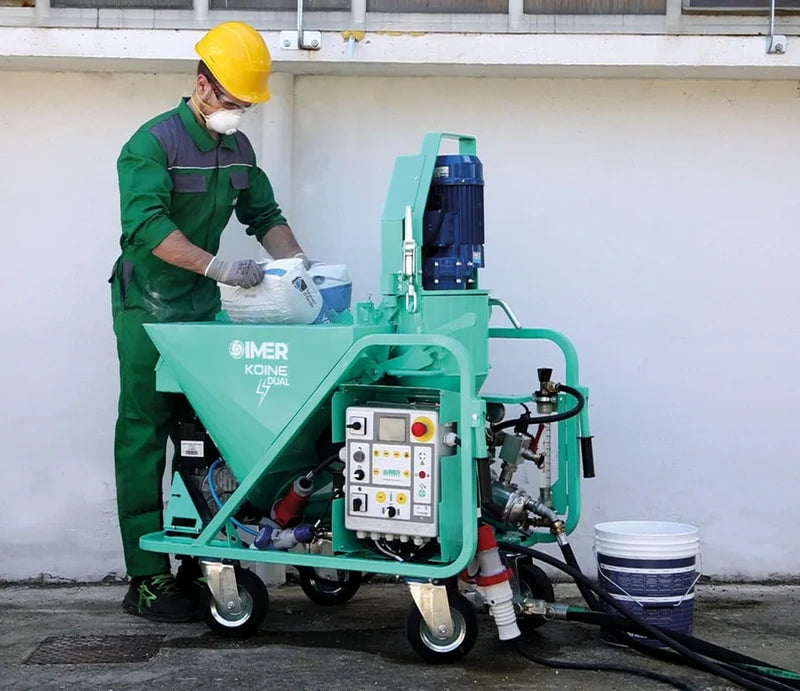

Dry bagged material is loaded directly into the hopper, where the gear-driven feed impeller moves it into the mixing chamber. Metered water is introduced and the high-shear turbo mixer produces a consistent mixture before the rotor/stator system pumps it through the included material hose.
The Koine Dual delivers material flow up to 140 cubic feet per hour and can process up to approximately 300 bags per hour in suitable self-leveling applications.
Key Features
-
Operates on 208V three-phase or 240V single-phase power
-
Nine horsepower total installed power
-
Material output up to 140 cu ft per hour
-
Processes up to approximately 300 bags per hour in suitable applications
-
Continuous batching, mixing and pumping
-
R8-1.5 rotor and stator included
-
High-shear turbo mixer
-
Gear-driven feed impeller
-
Self-priming stainless-steel water pump
-
Water system with flow meter and drainage valves
-
Material-delivery pressure gauge
-
Dust grate with vacuum connection
-
33-foot, 1-3/8-inch material hose included
-
50-foot push-button remote included
-
240V single-phase adapter included
-
Integrated tool storage and cleaning kit
-

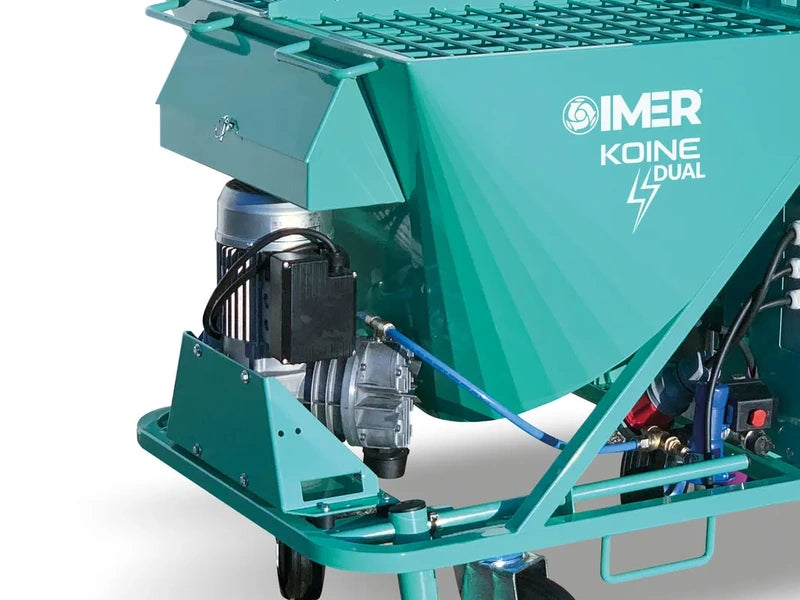

Compressor-ready for spraying applications
Applications
Depending on the material and selected accessories, the Koine Dual can be used for:
-
Pumping grout
-
Pumping self-leveling underlayments
-
Mixing and applying stucco
-
Spraying fireproofing
-
Low-volume shotcrete
-
Structural and repair mortars
-
High-volume floor-underlayment projects
-
Compatible 3D-printing materials and applications
Spraying applications require a compatible compressor, air hose and spray gun, which are sold separately.
Specifications
-
Power supply: 208V three phase or 240V single phase
-
Total machine power: 9 HP
-
Drive motor: 7.5 HP
-
Feed-wheel motor: 1 HP
-
Water-pump motor: 1 HP
-
Maximum material flow: Up to 140 cu ft/hr
-
Self-leveling output: Up to approximately 300 bags/hr
-
Loading height: Approximately 36 in
-
Dimensions: Approximately 29 in W × 47 in L × 62 in H
-
Weight: Approximately 574 lb
-
Included rotor/stator: R8-1.5
-
Included material hose: 33 ft × 35 mm
-
SKU: 1106312
Standard Equipment
-
Dust grate with vacuum port
-

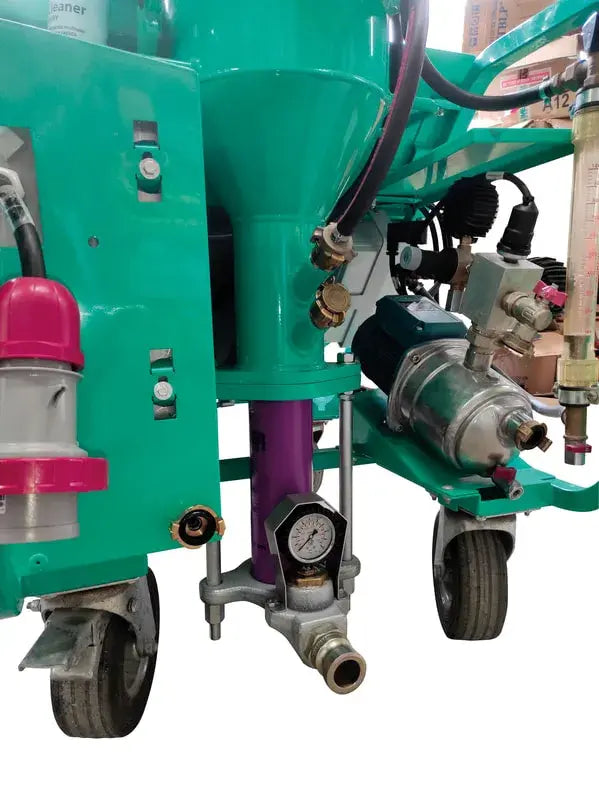

R8-1.5 rotor with tab and stator
-
Turbo mixer kit
-
Material-delivery pressure gauge
-
Gear-driven feed impeller
-
Self-priming stainless-steel water pump
-
Water system with flow meter and drainage valves
-
240V single-phase adapter
-
35 mm hose cleanout adapter
-
66-foot electrical cord
-
66-foot, 3/4-inch water hose
-
33-foot, 35 mm material hose with camlock fittings
-
50-foot push-button remote
-
Integrated tool-storage box
-
Cleanup kit with scraper and sponge
Optional Accessories
A range of optional compressors, spray equipment, hoses and alternative rotor/stator configurations is available. Select the required accessories above or contact us for assistance configuring the machine for your material and application.
Electrical Requirements
The Koine Dual requires a suitable 208V three-phase or 240V single-phase electrical supply. Confirm that the jobsite circuit, connector and power capacity meet the manufacturer’s requirements before operating the machine.
