IMER Mighty Small 50 EVO Pump and Spray Machine – 120V – 1106344

SKU: 1106344
Your Price:
$8,799.00

✔️ Authorised Online Dealer

✔️ Free Commercial Shipping

✔️ No Sales Tax (exclusions apply)

✔️ Price Match Guarantee

✔️ 30 Day Returns (conditions apply)

✔️ Fast 4-7 Day Standard Delivery

✔️ Question? Call our Experts on (817) 934-7315

Add to wishlist
Checkout Secure

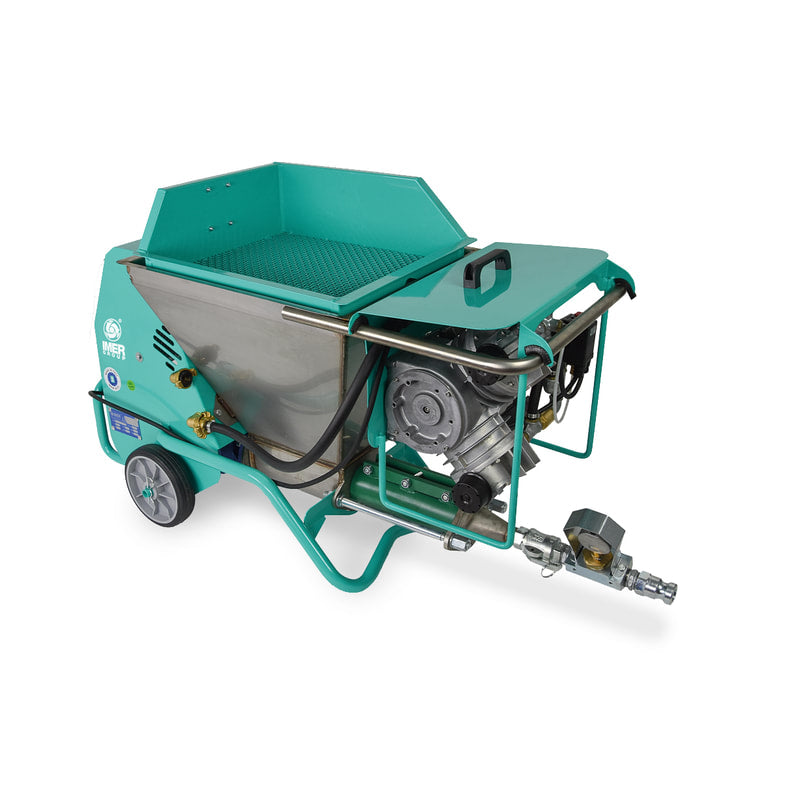

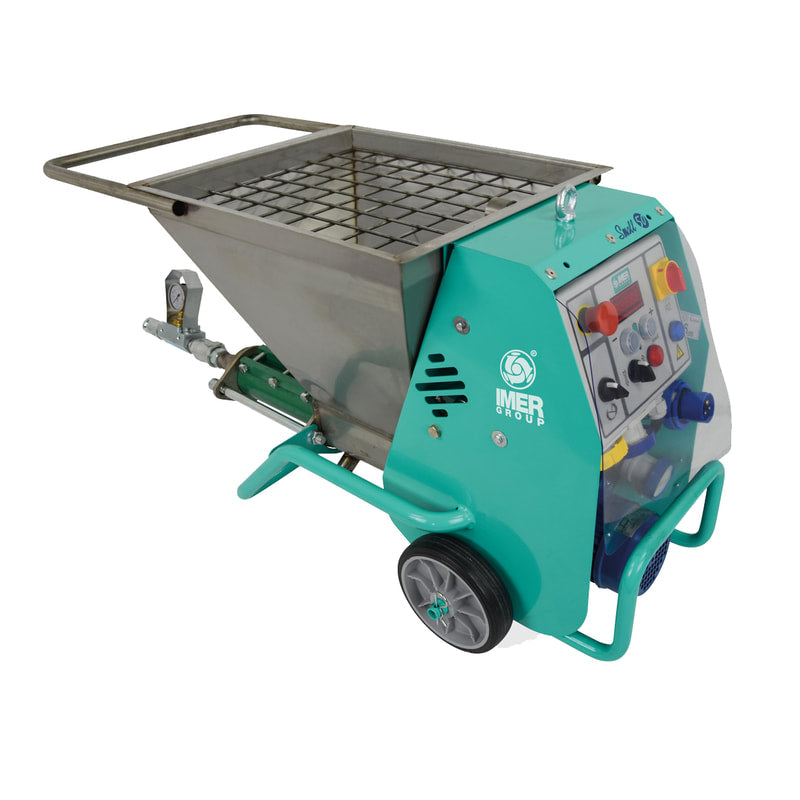

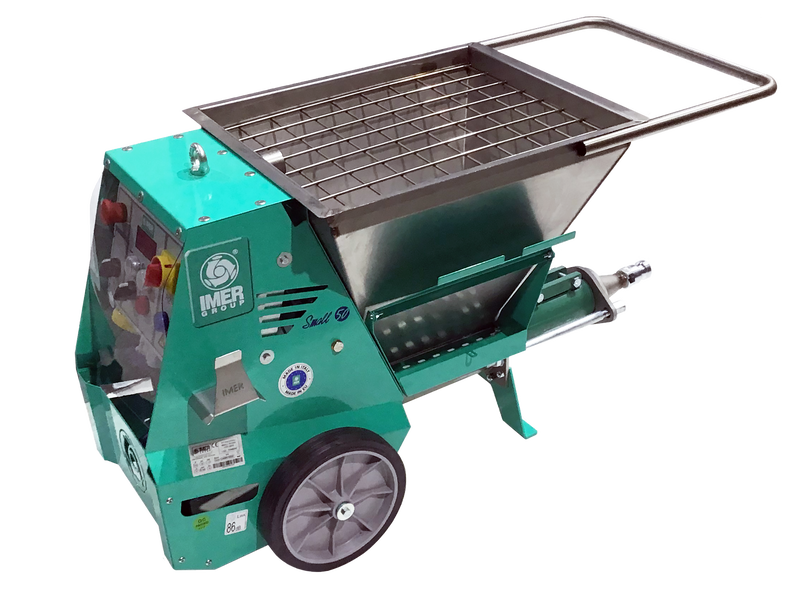

IMER Mighty Small 50 EVO Pump and Spray Machine

The IMER Mighty Small 50 EVO is a compact, portable progressive-cavity pump designed for pumping and spraying grout, self-leveling underlayments, repair mortar, stucco, fireproofing, waterproofing and other compatible materials.

Powered by a 1.75 HP, 120V single-phase motor, the Mighty Small 50 EVO can operate from a suitable standard jobsite electrical supply. Its compact dimensions and approximate 90-pound weight make it easy to transport and position in restricted-access working areas.

The included D8-1.5 rotor/stator system, inverter-driven controls and material-pressure gauge provide adjustable, controlled material delivery. A wide range of optional compressors, spray guns, hoses, injection lances and application-specific attachments allows the machine to be configured for different types of work.

Key Features

  • Compact and portable multi-purpose material pump

  • 1.75 HP electric motor

  • 120V, 60Hz single-phase operation

  • Progressive-cavity rotor/stator pumping system

  • D8-1.5 rotor and stator included

  • Inverter-driven variable-speed control

  • Stainless-steel hopper

  • Electric remote-control cable

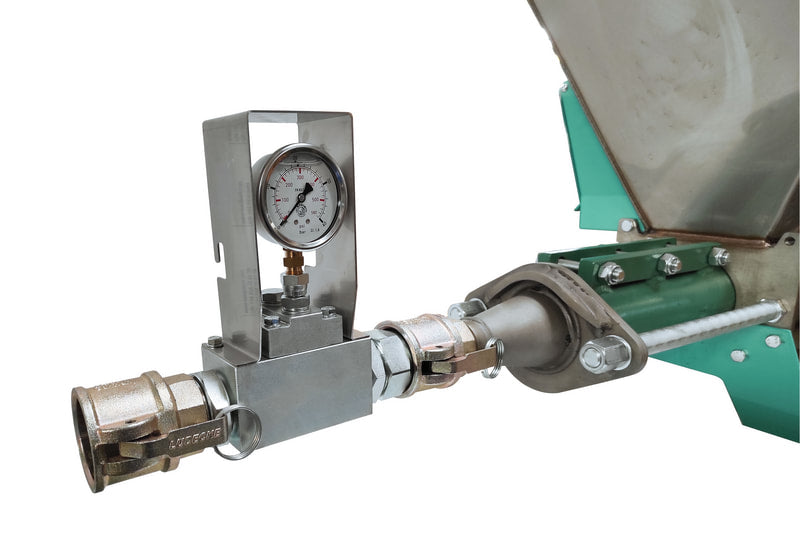

  • Material-delivery pressure gauge

  • Handles compatible materials containing aggregate up to 1/4 inch

  • Suitable for pumping and spraying applications

  • Approximately 90-pound machine weight

  • Accessory toolbox included

Applications

Depending on the selected accessories and material specifications, the Mighty Small 50 EVO can be used for:

  • Pumping grout

  • Pumping self-leveling underlayments

  • Spraying repair mortar

  • Applying stucco base coats

  • Spraying fireproofing

  • Spraying waterproofing products

  • Applying acrylic stucco and finish coatings

  • Tuckpointing and joint filling

  • Grout injection

  • Filling blocks, forms and door jambs

Spraying applications require a compatible compressor, air hose and spray gun, which are sold separately.

Specifications

  • Power supply: 120V, 60Hz, single phase

  • Motor power: 1.75 HP

  • Pumping system: Progressive-cavity rotor/stator

  • Included rotor/stator: D8-1.5

  • Maximum aggregate size: 1/4 in

  • Hopper capacity: Approximately 1.74 cu ft

  • Loading height: Approximately 25.5 in

  • Dimensions: Approximately 44 in L × 20.5 in W × 25.5 in H

  • Weight: Approximately 90 lb

  • SKU: 1106344

Standard Equipment

  • D8-1.5 rotor and stator

  • Stainless-steel hopper

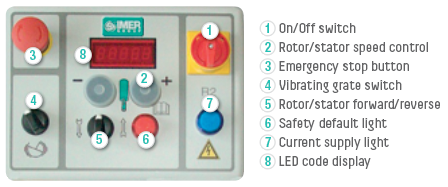

  • Inverter-driven control panel

  • Electric remote-control cable

  • Material-pressure gauge

  • Accessory toolbox

Optional Accessories

Optional compressors, spray guns, material hoses, injection lances, hopper attachments and alternative rotor/stator systems are available. Select the required accessories above or contact us for help configuring the pump for your material and application.

Electrical Requirements

This machine requires a suitable 120V, 60Hz electrical supply. Confirm that the jobsite circuit and extension-cord capacity meet the manufacturer’s requirements before use.
