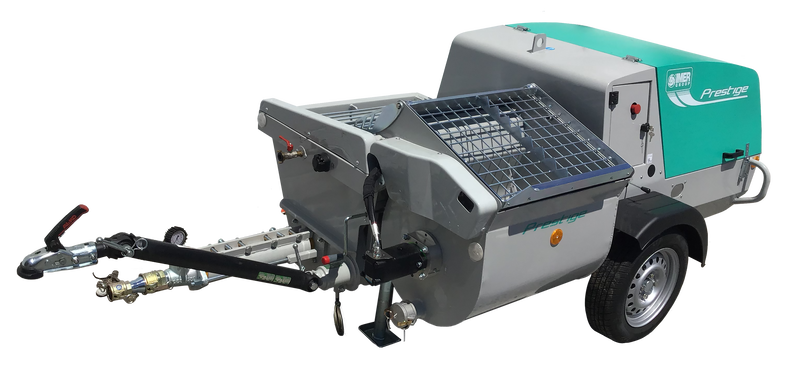

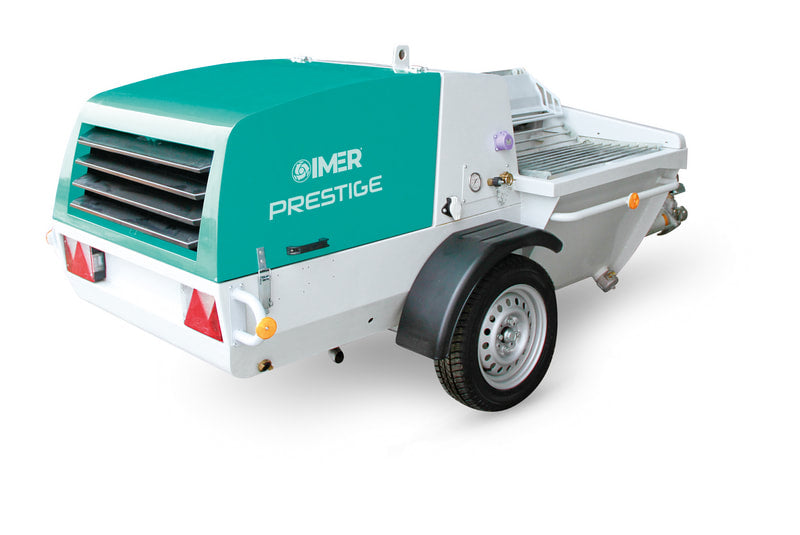

IMER Prestige 300 Diesel Pump and Spray Machine
The IMER Prestige 300 is a diesel-powered, multi-purpose mixing, pumping and spraying machine designed for grouts, self-leveling materials, fireproofing, mortar, stucco and shotcrete applications.
Combining a high-shear hydraulic mixer, progressive-cavity rotor/stator pump and onboard air compressor in one towable package, the Prestige 300 helps reduce the amount of separate equipment required on the jobsite.
The included adjustable 2L6 rotor/stator provides variable material output for a wide range of pumping and spraying work. Alternative rotor/stator systems and accessories can be added to configure the machine for specialized applications, including materials containing aggregate up to 3/8 inch.
A centralized control panel brings the machine’s primary functions together in one location, while the programmable mixer timer helps operators produce more consistent batches.
Key Features
-
Mixes, pumps and sprays from one self-contained machine
-
24 HP Yanmar diesel engine
-
High-shear 6.3-cubic-foot hydraulic mixer
-
Adjustable 2L6 rotor/stator included
-
14 CFM onboard compressor
-
Variable-speed electro-hydraulic controls
-
Programmable mixer timer
-
Seven-cubic-foot material hopper
-
Suitable for grout and self-leveling materials
-
Suitable for spraying fireproofing, mortar and stucco
-
Can be configured for wet-process shotcrete
-
Optional rotor/stator systems accommodate different materials and output requirements
-
Highway-use tow package included
-
Compact design for transportation and jobsite positioning
Applications
Depending on the selected accessories and rotor/stator configuration, the Prestige 300 can be used for:
-
Pumping grout
-
Pumping self-leveling underlayments and screeds
-
Spraying fireproofing
-
Pumping and spraying mortar
-
Stucco application
-
Wet-process shotcrete
-
Repair mortars
-
Grouting and filling applications
-
Materials containing aggregate up to 3/8 inch with the appropriate optional rotor/stator
Specifications
-
Engine: Yanmar diesel
-
Engine power: 24 HP
-
Pumping system: Progressive-cavity rotor/stator pump
-
Included rotor/stator: Adjustable 2L6
-
Compressor output: 14 CFM
-
Hopper capacity: 7 cu ft
-
Mixer capacity: 6.3 cu ft
-
Maximum aggregate: Up to 3/8 in with the appropriate optional rotor/stator
-
Dimensions: Approximately 131.5 in L × 55.5 in W × 53 in H
-
Weight: Approximately 1,653 lb
-
SKU: 1106443
Standard Equipment
-
24 HP Yanmar diesel engine
-
14 CFM onboard compressor
-
Adjustable 2L6 rotor/stator
-
High-shear hydraulic mixer
-
Programmable mixer timer
-
Variable-speed electro-hydraulic controls
-
Metal accessory box
-
Two clean-out sponges
-
Highway-use tow package
Optional Accessories
Optional accessories are sold separately and are not included with the Prestige 300:
-
33 ft × 35 mm material hose – Part 1107528
-
33 ft × 50 mm material hose – Part 1107533
-
Aqua Control electronic metering system – Part 1107209
-
Vibrating grate – Part 1107036
-
Four-function wired remote with 164 ft cable – Part 1107086
-
IM25L rotor/stator kit – Part 1107149
-
60.12 rotor/stator kit – Part 1107090
-
L7-1.5 rotor/stator kit – Part 1107660
-
50 mm to 35 mm material-hose reducer – Part 1106178
-
35 mm spray gun – Part 1107577
-
16 ft × 35 mm to 25 mm material hose – Part 1107074
-
Pintle tow ring – Part 1107161
-
Shotcrete gun – Part 1106250
-
Five-function radio remote – Part 1107001
-
Hydraulic power washer – Part 1107208
-
Five-foot overhead wand – Part 1107549
Please contact us if you need help configuring the machine for a particular material or application.
