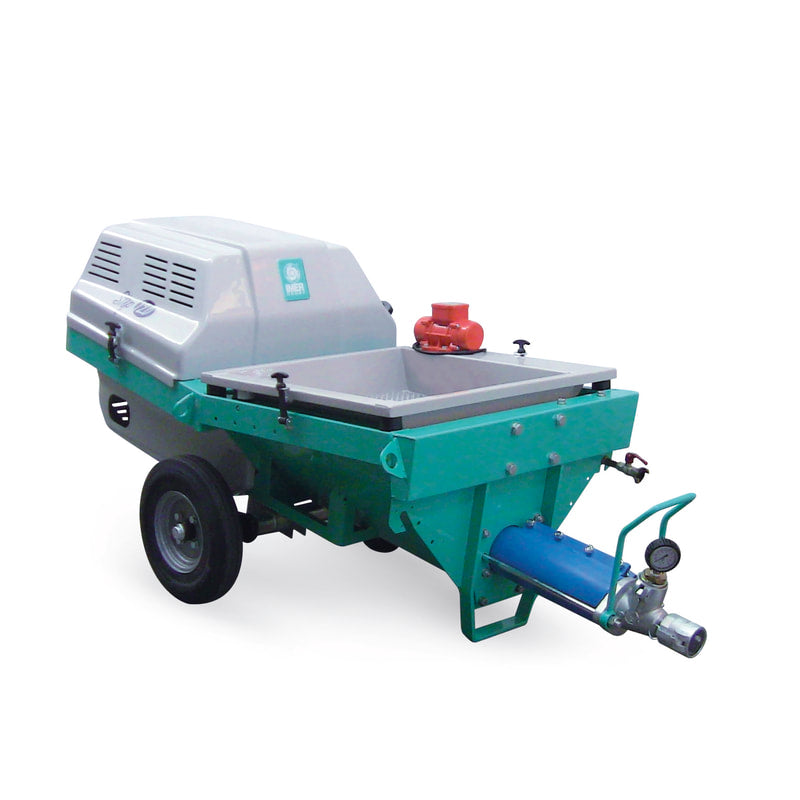

The IMER STEP-UP 120 is a powerful three-phase rotor/stator pump designed for pumping and spraying mortar, stucco, grout, fireproofing, waterproofing, self-leveling underlayments and other pumpable construction materials.
Its 7.5 HP, two-speed, continuous-duty motor provides the power needed for medium- to large-scale projects, long pumping distances and higher material output. The standard IM25L rotor/stator handles aggregate up to 3/8 inch and delivers up to approximately 2.75 cubic yards per hour.
The STEP-UP 120 can be configured for a wide range of applications using optional compressors, spray guns, hoses, vibrating grates and alternative rotor/stator kits. It is supplied remote-control ready, allowing a compatible remote system to be added separately.
KEY FEATURES
• Powerful 7.5 HP, 208V three-phase motor
• Two-speed control panel
• 100% duty-cycle motor for continuous professional use
• Pumps or sprays mortar, stucco, grout, fireproofing and other compatible materials
• Handles aggregate up to 3/8 inch with the standard IM25L rotor/stator
• Maximum standard output of approximately 2.75 cubic yards per hour
• Horizontal pumping distance up to approximately 300 feet
• Vertical pumping distance up to approximately 200 feet
• Large 4.25-cubic-foot material hopper
• Remote-control ready
• Tow kit for easier jobsite positioning
• Optional application-specific accessories and rotor/stator configurations available
TECHNICAL SPECIFICATIONS
Model: STEP-UP 120
SKU: 1106181
Power supply: 208V / 60Hz / three phase
Motor: 7.5 HP, two speed
Duty cycle: 100%
Standard rotor/stator: IM25L
Maximum aggregate size: 3/8 inch
Maximum flow with IM25L: Approximately 2.75 cubic yards per hour
Maximum horizontal pumping distance: Approximately 300 feet
Maximum vertical pumping distance: Approximately 200 feet
Hopper capacity: 4.25 cubic feet
Dimensions: 33 inches wide × 80 inches long × 38 inches high
Weight: Approximately 616 lb
Noise level: Less than 79 dB
STANDARD EQUIPMENT
• Two-speed control panel
• IM25L rotor/stator
• 66-foot power cord
• 7.5 HP two-speed, three-phase motor

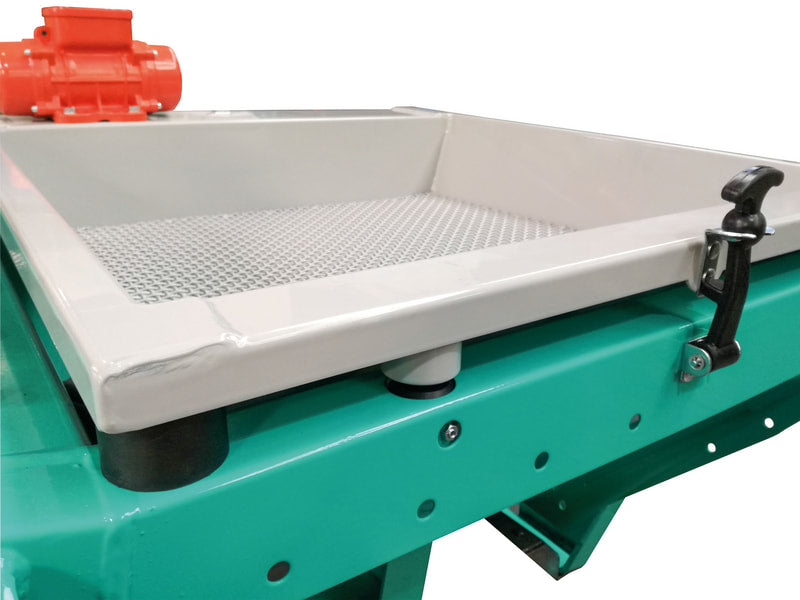

• Grate for premixed materials
• Tow kit
• Remote-control-ready connection
• Accessory toolbox
IMPORTANT
This is a 208V three-phase machine. Please confirm that a suitable three-phase electrical supply is available before ordering.
A remote control, compressor, material hoses and application-specific spray equipment are not included unless selected or purchased separately.
