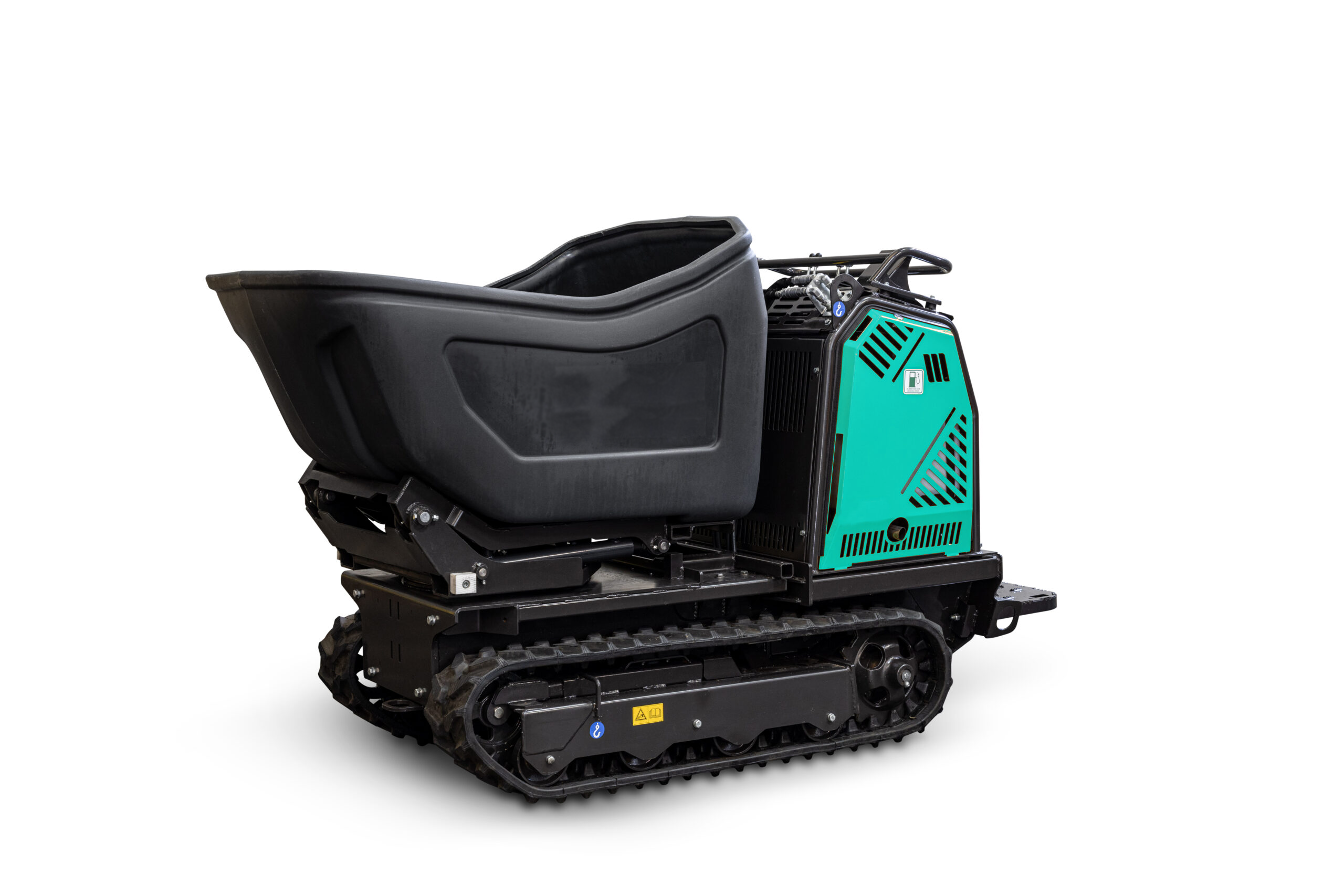

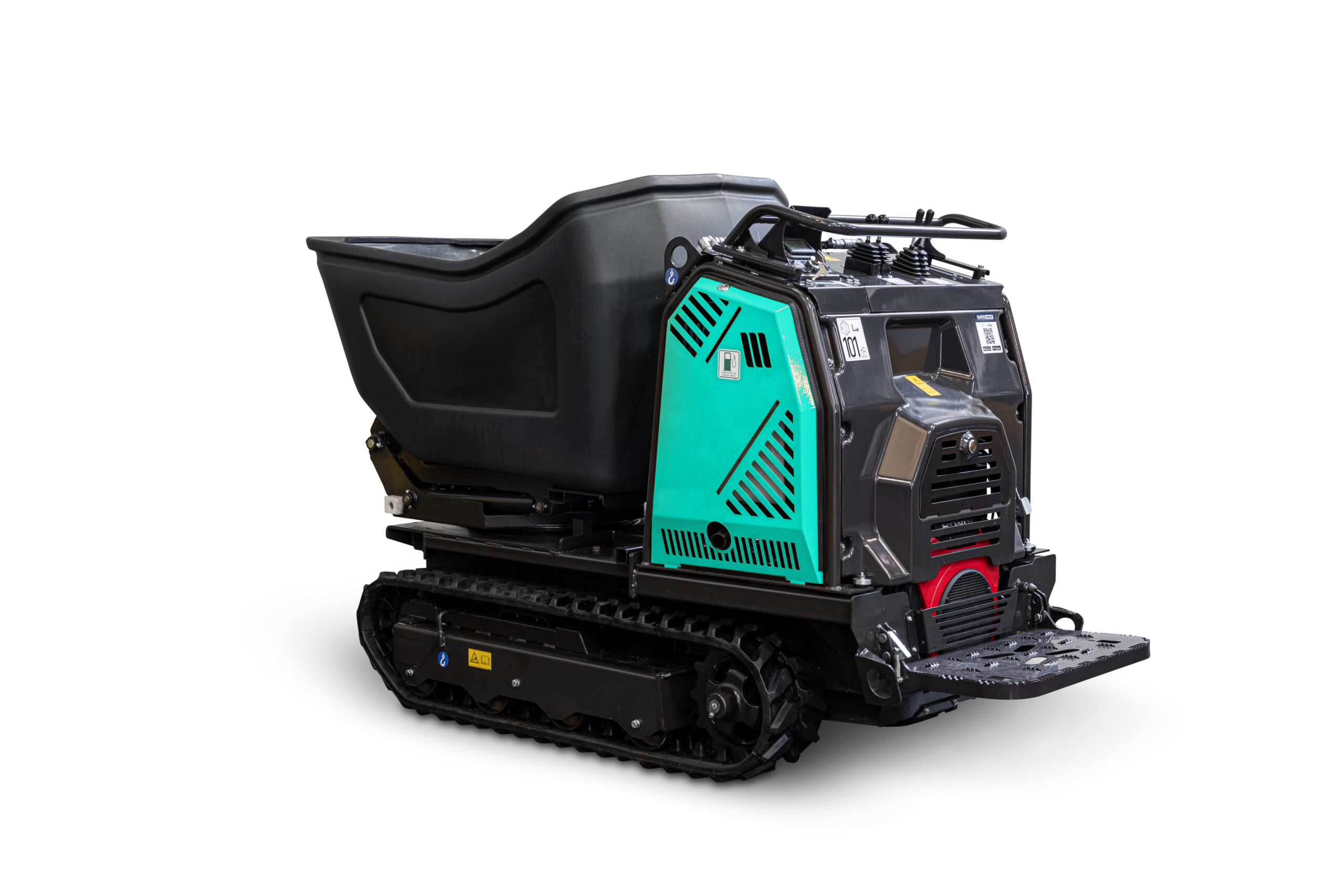

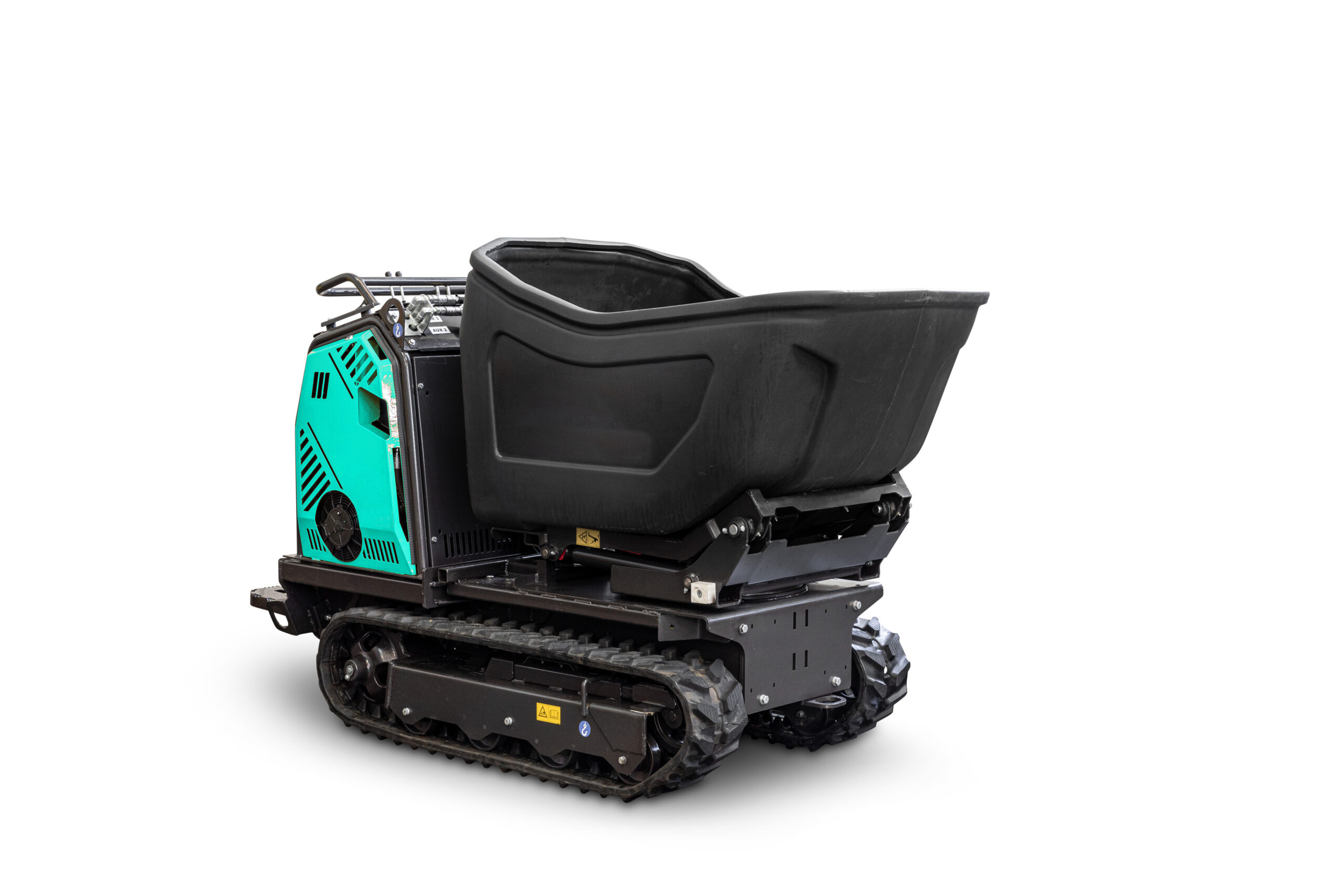

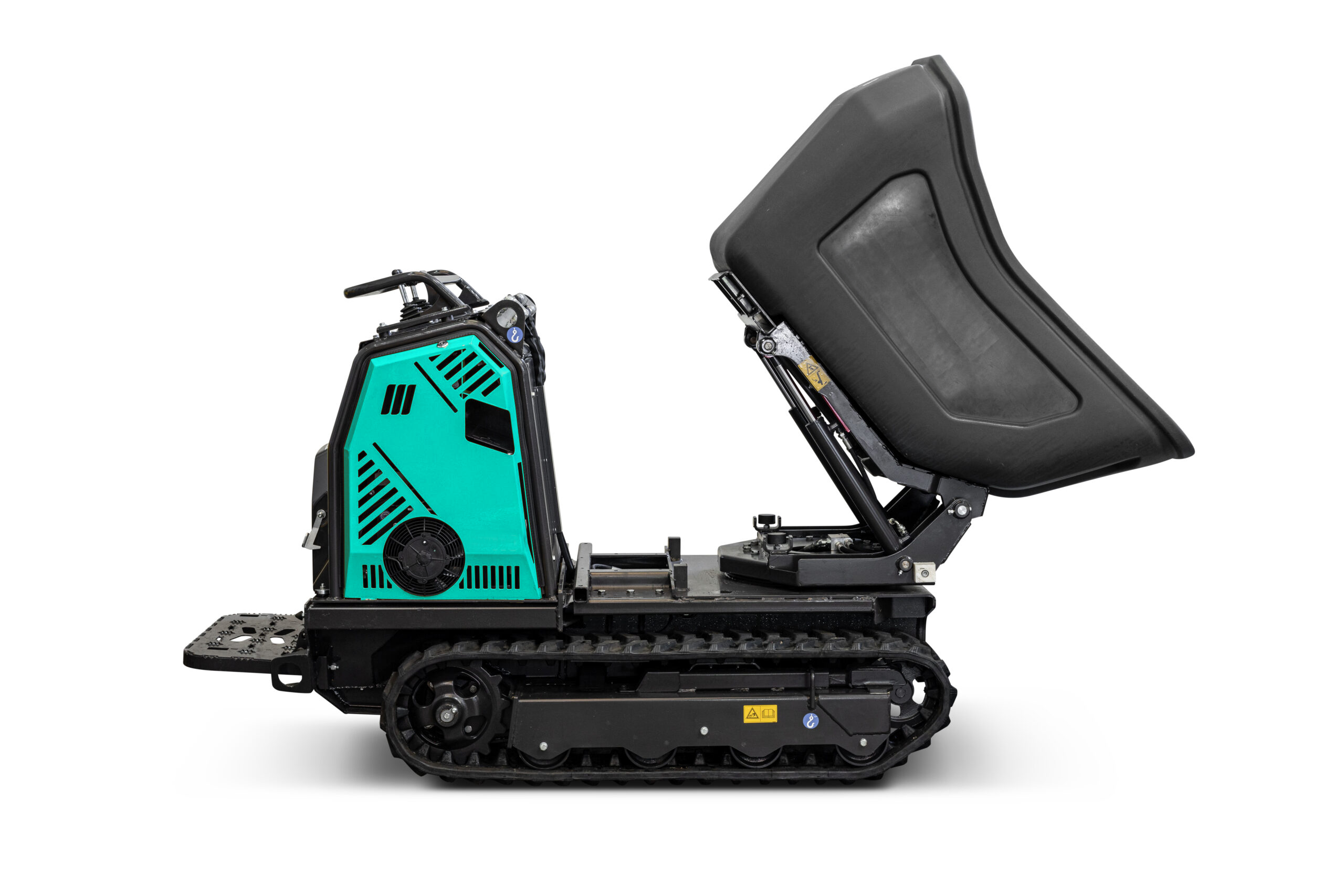

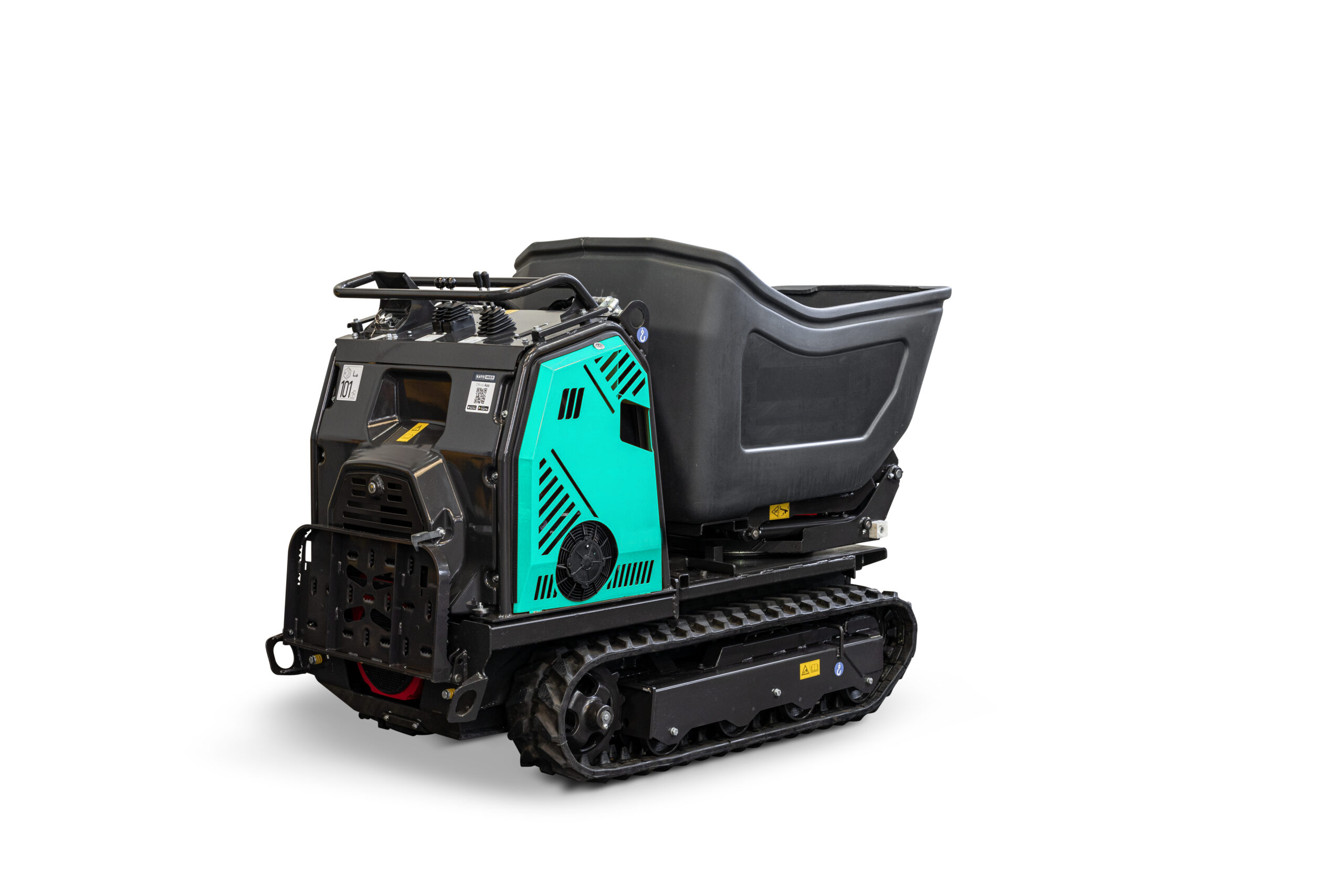

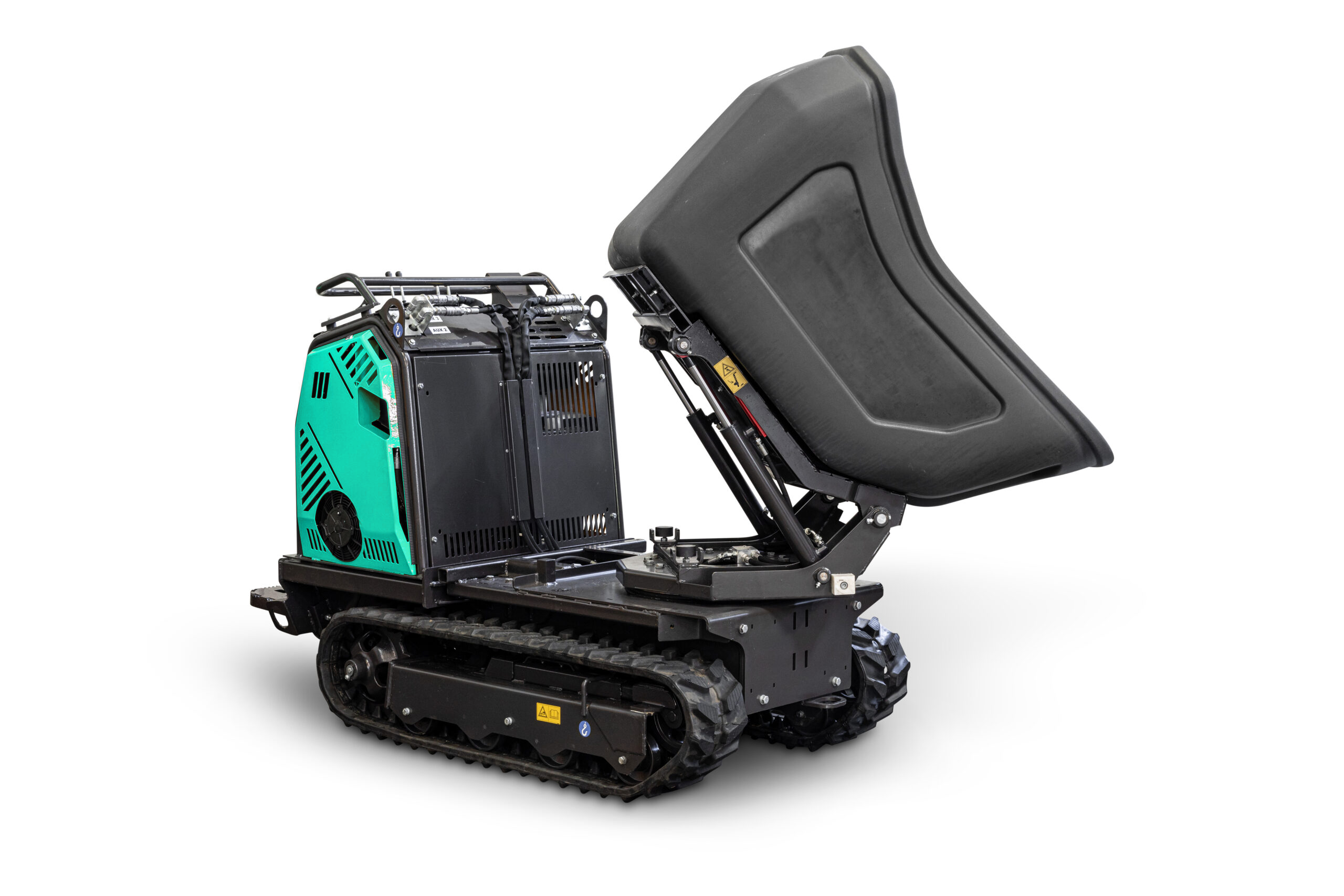

Built for demanding concrete and material-handling jobs, the IMER Tracker 1624 combines a 2,400 lb operating load with compact tracked mobility. Its 35⅜-inch overall width allows it to access confined work areas, while the straight-dump poly bucket provides up to 19 cu. ft. of heaped capacity.
The 25 HP fuel-injected Honda iGX800 engine, dual hydraulic pump system and hydraulic joystick controls provide the power and maneuverability needed for concrete placement, landscaping, demolition and general jobsite hauling.
Key Features
- 2,400 lb operating load
- 16 cu. ft. struck / 19 cu. ft. heaped capacity
- Straight-dump poly bucket included
- 25 HP fuel-injected Honda iGX800 engine
- Dual hydraulic pump system
- Electric start
- Travel speeds up to 6 mph

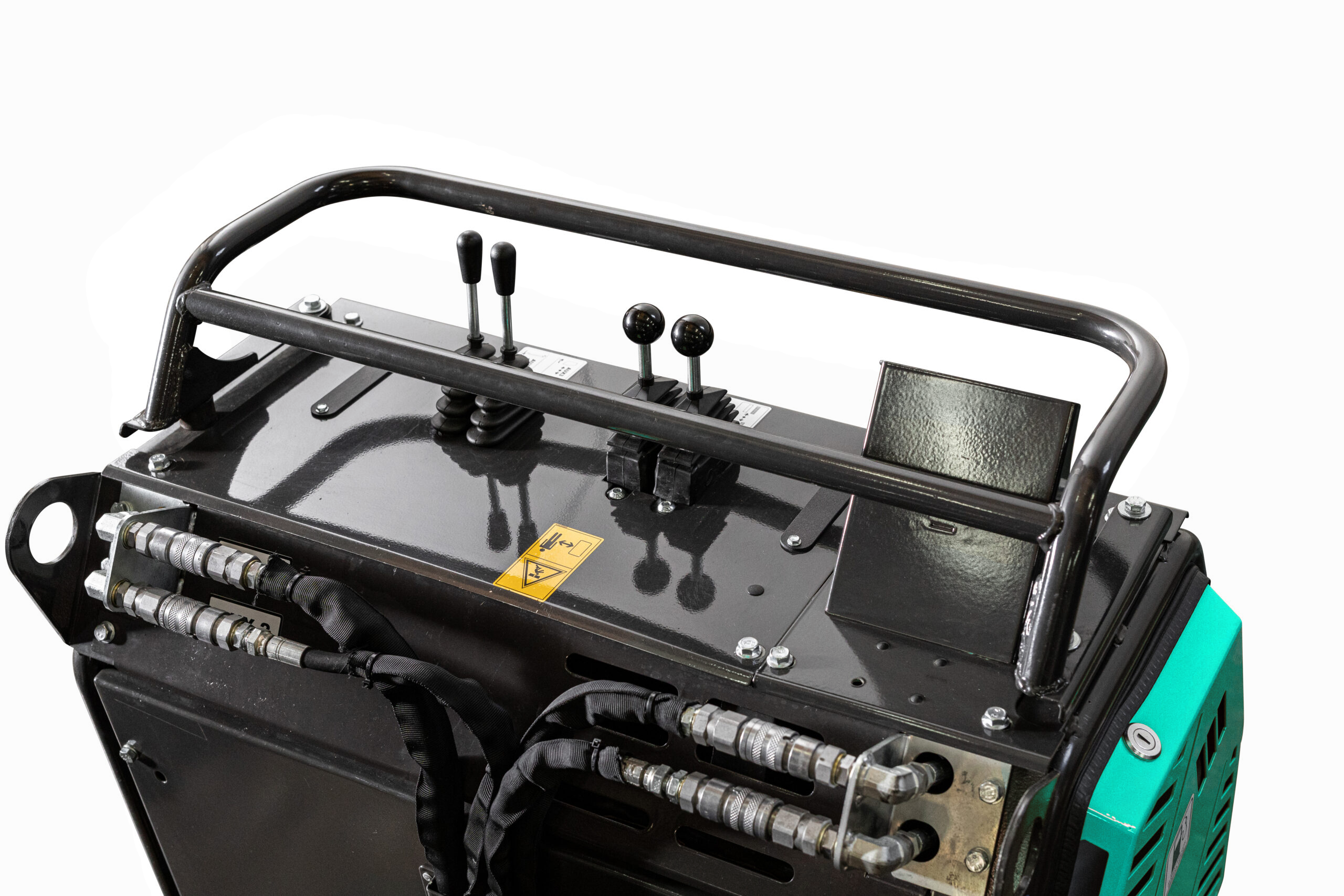

- Hydraulic joystick speed control
- Three-level speed control and automatic idle
- CAN Bus digital touchscreen dashboard
- Heavy-duty hydraulic oil cooler
- Rubber-tracked undercarriage for challenging terrain
- Double rubber shock-mounted operator platform
- Compact 35⅜-inch overall width

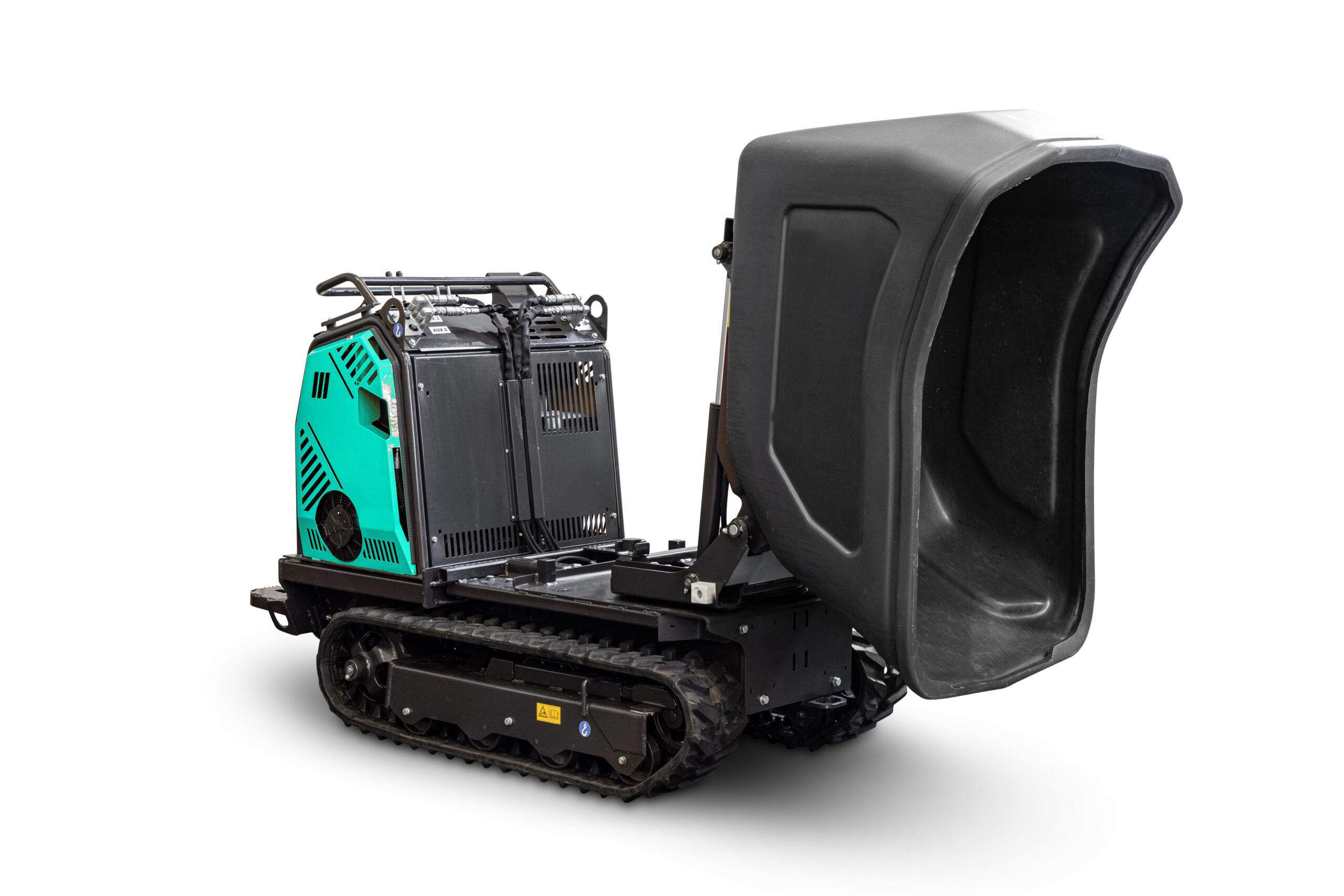

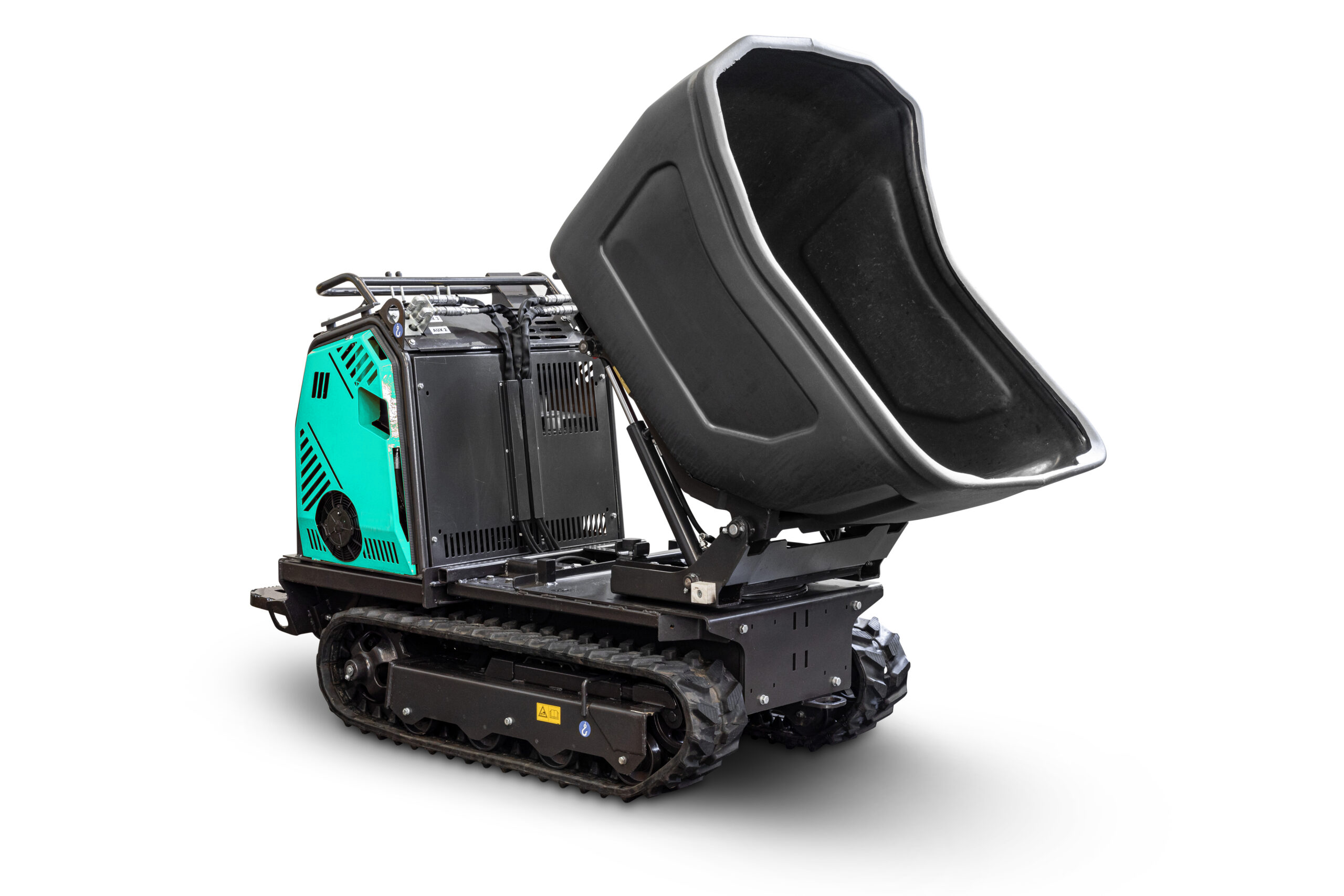

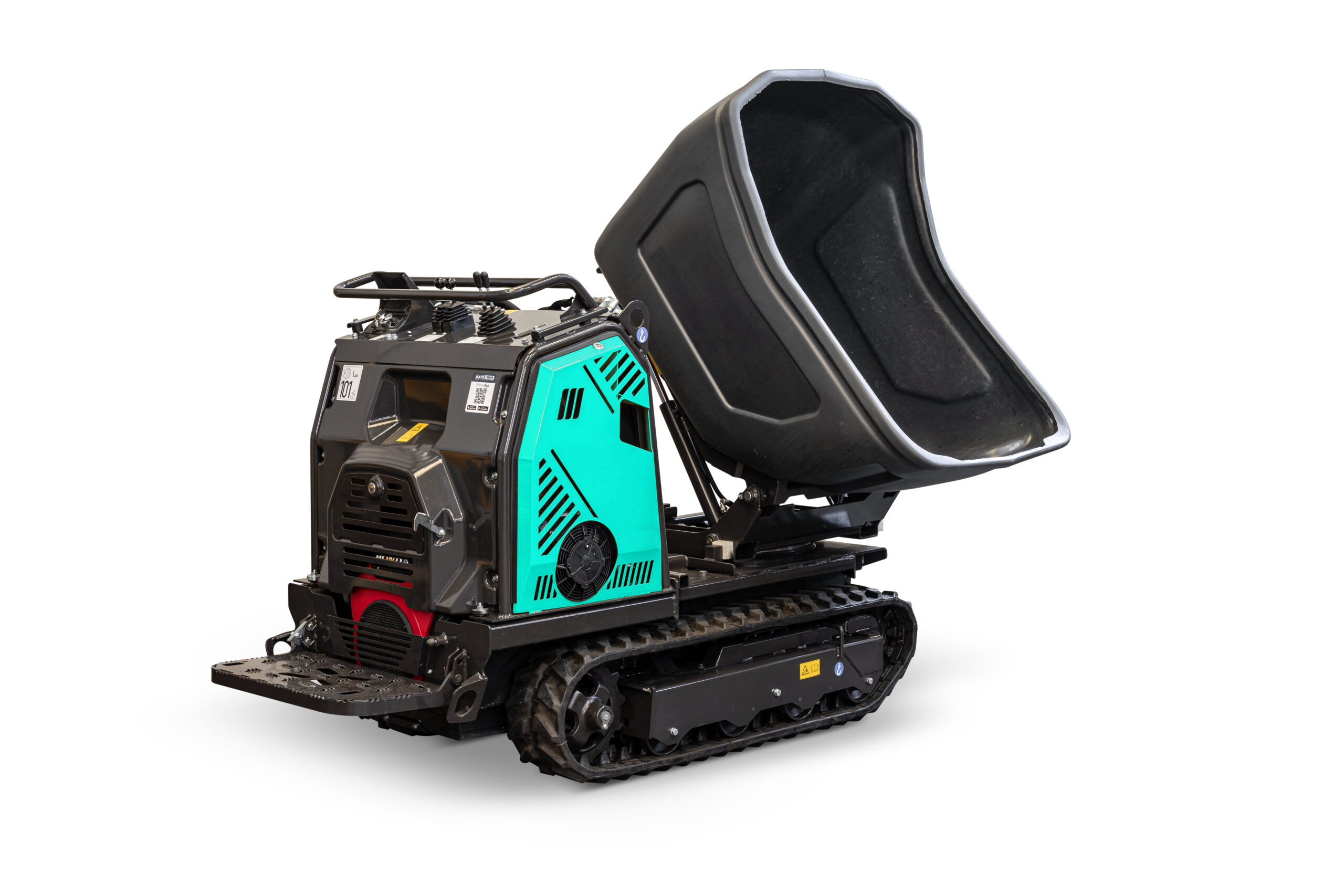

- Low discharge height designed to reduce splashing
- Tub design helps minimize material spillage

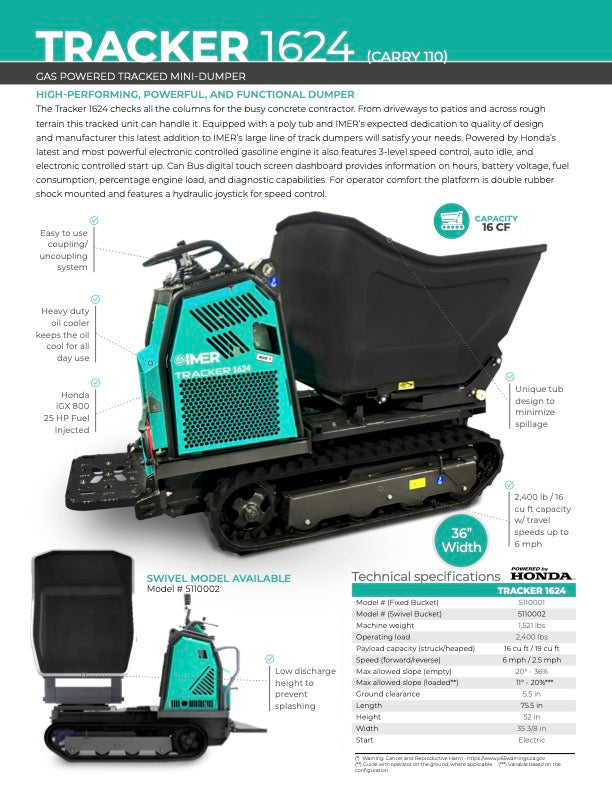

Specifications
- Manufacturer: IMER USA
- Model: Tracker 1624 Fixed Bucket
- SKU: 5110003
- Engine: Honda iGX800
- Power: 25 HP
- Fuel system: Fuel injected
- Starting system: Electric
- Hydraulic system: Dual hydraulic pump
- Bucket type: Straight-dump poly bucket
- Machine weight: 1,521 lb
- Operating load: 2,400 lb
- Payload capacity: 16 cu. ft. struck / 19 cu. ft. heaped
- Forward speed: Up to 6 mph
- Reverse speed: Up to 2.5 mph
- Ground clearance: 5.5 in
- Length: 75.5 in
- Height: 52 in
- Width: 35⅜ in
What’s Included
- IMER Tracker 1624 tracked carrier
- 25 HP Honda iGX800 engine
- Straight-dump poly bucket
- Integrated operator platform
Optional Attachments
Compatible Tracker 1624 attachments may be selected separately, including a steel bucket, steel bucket with self-loading shovel and three-sided metal dumping platform.
Shipping Information
Shipping is included to qualifying commercial addresses within the contiguous United States. The customer must have a loading dock or forklift available to unload the equipment. Residential, limited-access and liftgate delivery may incur additional charges. Please contact us before ordering if you are unsure whether your address qualifies.
Frequently Asked Questions
What is the carrying capacity of the Tracker 1624?
It has a 2,400 lb operating load and provides 16 cu. ft. of struck capacity or up to 19 cu. ft. when heaped.
Which bucket comes with SKU 5110003?
This model includes a straight-dump poly bucket. It is the fixed-bucket version of the Tracker 1624.
How wide is the machine?
The Tracker 1624 is approximately 35⅜ inches wide, allowing it to work in relatively confined jobsite areas.
What engine powers this model?
It is powered by a 25 HP, fuel-injected Honda iGX800 gasoline engine with electric start.
Can other attachments be added?
Yes. Optional Tracker 1624 attachments include a steel bucket, a steel bucket with self-loading shovel and a three-sided dumping platform. Contact us if you need help confirming your preferred configuration.
Is the Tracker 1624 suitable for rough terrain?
Yes. Its tracked undercarriage, compact dimensions and hydraulic controls are designed for moving material across uneven and challenging jobsite terrain.
